Clear-Com TW47
2-Way Radio and Walkie-Talkie Interface

OUR PART #:  TW47

The TW-47 is a stand-alone interface designed to connect a 2-way radio or walkie-talkie into a single channel of a standard Clear-Com...
Learn More
Our Price: $504.00
List Price: $560.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com TW47
Qty:
In Stock

Similar Products

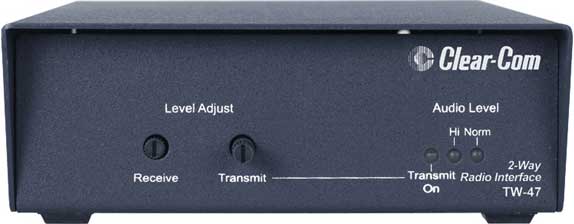

The TW-47 is a stand-alone interface designed to connect a 2-way radio or walkie-talkie into a single channel of a standard Clear-Com, RTS* (*for RTS systems equipped with the Call Light feature), or compatible 2-wire party-line intercom system. It provides both audio connection and "push-to-talk" transmitter keying, using standard Call signals.

The ability of a 1- to 5-watt walkie-talkie to both talk and receive from the wired intercom system can greatly extend an intercom system's capability, especially in very large indoor and outdoor facilities and venues. The TW-47 is powered directly from the intercom line, and connection to the radio is via a single DB-9F 9-pin connector. The interface has extensive RF and EMI isolation to prevent the 2-way radio RF from radiating into the intercom system.

Interfacing
In order to accommodate the widest variety of 2-way radios, the TW-47 is supplied with a 9-pin connector and wiring diagrams for many 2-way radios.

The combination of internal jumpers (switches) and front panel "Transmit" and "Receive" level controls assures correct level matching to virtually any radio. Adjustments from -57dB microphone level to +11dB line level are supported. A bi-color LED provides a visual indication of audio level from the intercom line.

Radio Transmitter 'Keying'
A relay contact provides the required "Push-to-Talk" transmitter "keying" of the radio. This relay is activated by detecting the "Call Signal" on the intercom channel. The relay contacts, in conjunction with the custom-made radio cable, allow correct transmitter keying of virtually any type of radio. A "Transmit Key" LED indicates that the relay is active.

Certain Clear-Com stations can be set up so that the Call signal is activated automatically when the Talk button is pressed (Talk-on-Call). With these stations, the radio transmitter can be keyed by simply pushing the Talk button. The operation of the 2-way radio then becomes seamless and transparent to station users.

Clear-Com TW47 Features:

  • Interfaces any 2-way radio to a Clear-Com, RTS, or compatible system
  • Accepts any walkie-talkie
  • Powered by the intercom line
  • Easy to interconnect
  • Individual transmit and receive level controls
  • Bi-color LED audio level indicator
  • Small footprint - will fit anywhere

Clear-Com TW47 Applications:

  • Special event production and coordination
  • Outdoor events
  • Theatrical rehearsals
  • Touring shows where all usable, licensed radio frequencies are already allocated
  • House manager communications and tech rehearsals
  • Wherever increased mobility and greater reach are required from the intercom system

Clear-Com TW47 Specifications:

Radio to Party Line

  • Frequency Response: 200-20KHz ± 3dB
  • Max Gain: >=-5dBu
  • Distortion: <=0.3%
  • Noise: <=-70dBu
  • Max Level Before Clipping: >=+17dBu
  • Green LED Threshold: -22dBu ± 3dB
  • Red LED Threshold: -16dBu ± 3dB
  • Input Impedance: 400 ohms ± 100 ohms

Party Line to Radio

  • Frequency Response: 200-8KHz ± 3dB
  • Max Gain J7 ON, J8 ON: -12dBu ± 3dB
  • Max Gain J7 OFF, J8 ON: +2dBu ± 3dB
  • Max Gain J7 OFF, J8 OFF: +27dBu ± 3dB
  • Distortion: <=0.3%
  • Noise: <=-50dBu
  • Max Level Before Clipping: >=0dBu

Technical Specifications

  • Power Requirements
    • Input Voltage Range: 20-30VDC
    • Quiescent Current:<=40mA
    • Current with Audio: <=50mA
    • Current with Call: <=60mA
  • Rear Panel Connectors
    • (1) XLR3F
    • (1) DB-9F
  • Front Panel Controls and Indicators
    • Transmit: (1) Red LED
    • AudioLevel Hi: (1) Red LED
    • Audio Level Norm: (1) Green LED
    • Receive LevelAdjust: (1) Control
    • Transmit Level Adjust: (1) Control
  • Dimensions (H x W x D): 1.8" x 3.95" x 6.4"
  • Weight: 1 lb 4 oz
