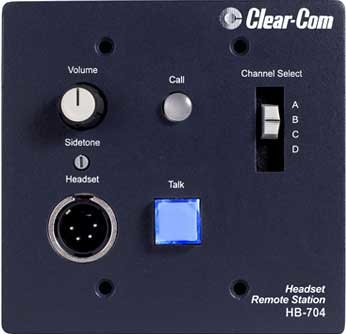

Clear-Com HB-704
Intercom Headset Station, 4 Channel

OUR PART #:  HB-704

Clear-Com's HB-704 is a four-channel-selectable, full-duplex headset station, able to be mounted into a wall or other surface.
Learn More
Our Price: $400.50
List Price: $445.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com HB-704
Qty:
In Stock

Similar Products

Clear-Com's HB-704 is a four-channel-selectable, full-duplex headset station, able to be mounted into a wall or other surface. These head-set stations are ideal for installation in theatrical, performance, broadcast, and industrial facilities - wherever a multi-channel, full-duplex headset communications panel is desired.

The unit is mounts in a standard U.S. two-gang outlet box. The stations offer excellent speech intelligibility even in high noise environments. Microprocessor-controlled logic plus a set of internal and external controls allow the features of these stations to be tailored to the needs of the user. Electronic switching for the talk button, blue-color LED (on) or amber-color (off), permits momentary or latching operation. A Remote Mic Kill (RMK) signal on the intercom line will turn off the talk function if it is accidentally left on.

A red-color LED tracks the incoming call signal, so it can be used for visual cueing. An associated call button allows the user to place a call signal on the selected intercom line. The standard 4-pin XLR headset jack accommodates Clear-Com and compatible dynamic headsets. A sidetone level control adjusts the amount of the user's voice heard in the headset. An automatic limiter circuit adjusts and limits the microphone output to the intercom line. A four-position switch allows the user to select from the attached intercom channels. Connections to the intercom lines are made via a screw-terminal block, using standard two-wire shielded mic cable.

The station may be used with the optional TW (two channels on a single mic cable) daughter board. With the TW board, the stations become plug-in compatible with a Clear-Com TW system. The HB-704 is housed in a durable package with a steel front panel.

Clear-Com HB-704 Features:

  • Selectable four-channel full-duplex communication
  • Microprocessor controlled logic and switching
  • Momentary/latching talk switch with LED
  • Visual call signaling with bright LED indicator
  • Headset connector with volume control and sidetoneadjust
  • Use with optional TW or 4-wire circuit boards
  • Easy installation and connection

Clear-Com HB-704 Specifications:

  • Headset Microphone Input
    • Input Type : Dynamic
    • Input Impedance: >=1K ohm
    • Mic Limiter Threshold: -2dBu ± 3dB
    • Mic Limiter Range: >= 15dB
  • Program Line Input
    • Input Impedance: >= 5K ohms
    • < /UL>
    • Headset Output
      • Load Impedance: >= 8 ohms
      • Output Impedance: <=25 ohms
      • Output Limiter Threshold: +5dBu ± 3dB
      • Maximum Output Level before Distortion: >= 17dBu
      • < /UL>
      • Party Line Output
        • Off Noise: < -74dBu
        • Output Impedance: >10K ohms
      • Party Line Input
        • Crosstalk: < -60dB
        • Max level before Clipping: >= 12dBu
        • < /UL>
        • Frequency Response
          • Headset Mic - Party Line: 300 - 15KHz ± 3dB
          • Party Line - Headset Out: 300 - 15KHz ± 3dB
        • Max Distortion
          • Headset Mic - Party Line: <= 0.5%
          • Party Line - Headset Out: <= 0.2%
          • < /UL>
          • Noise
            • Headset Mic - Party Line: < -70dBu
          • Max Gain
            • Headset Mic - Party Line: 41dB ± 2dB
            • Party Line - Headset Out: >= 34dB
            • < /UL>
            • Power
              • Input Voltage Range: 20-30 VDC
              • Input Current (Idle): <=50mA
              • Input Current (Max): <=100mA
            • Internal Adjustments and Connections
              • Intercom Line: Seven terminalconnector
              • Option Switches: Two DIP switches
              • Option Board Jumper: Two sets of options jumpers
            • Front Panel Connectors
              • Headset: (1) XLR-4M
            • Front Panel Controls & Indicators
              • (1) Sidetone control
              • (1) Talkbutton
              • (1) Call button
              • (1) Channel select switch
              • (1) Volume control
            • Environmental: 32 - 122°F
            • Dimensions (W x H x D): 4.625" x 4.5" x 1.75"
            • Weight: 0.46 lbs
