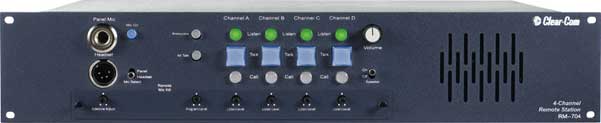

Clear-Com RM704 Remote Intercom Station, 4 Channel

Clear-Com's RM-704 is a 4-Channel 2RU Remote Station with built-in Speaker that is intended to work with other Clear-Com party-line products. Getting its power from the intercom line, the RM-704 can monitor intercom activity on one or all channels with individual volume level controls. Monitoring intercom activity is possible through a headset or the internal high sensitivity loudspeaker.

The RM-704 has mic pre-amps with limiters, along with an individual electronic momentary/latching Talk button that is available for each channel. Illuminated dual-action Talk buttons light an LED dimly when latched: blue-color while in standby, amber-color when latched. The channels can be accessed separately or simultaneously without tying them together. A selector switch toggles between the headset or microphone. The Talk buttons can also be controlled with a footswitch.

For paging, the RM-704 provides a balanced, line-level output signal to a ¼-inch TRS connector on the rear panel. The front panel Announce button activates the output and the Announce relay. The relay circuit, on a separate ¼-inch TRS connector, is typically used to mute monitors.

Clear-Com RM704 Features:

• Four-channel remote station
• Dual-action electronic momentary/latching Talk buttons
• Individual listen volume controls
• Balanced audio input with program interrupt (IFB)
• Call signal buttons for each channel
• Microphone limiting
• Volume controls for each channel
• Visual and audible Tone Alert signaling
• Hot mic and line-level outputs
• Built-in speaker
• External switchable line termination on each channel

Clear-Com RM704 Specifications:

• This information can be found on the Data Sheet in the above Documentation tab.
