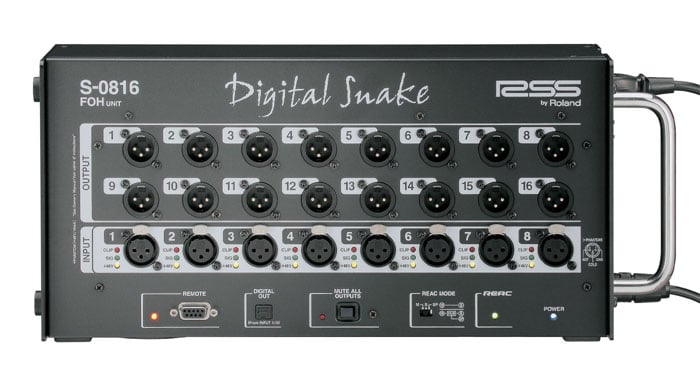

Roland System Group S-0816
Digital Snake, Front of House Unit

OUR PART #  S0816

Our Price: $1,395.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Compact, portable digital snake. Part of the S-1608 system.

The REAC (Roland Ethernet Audio Communication) protocol is an industry proven, low latency, high quality 24 bit/ 96 kHz audio transport protocol used by the S-0816.  The REAC protocol allows the Digital Snake’s signal to be “split” to as many positions as required such as monitor, broadcast and recording splits using the RSS S-4000-SP or any standard gigabit Ethernet switch.

Roland S-0816 Specifications:

  • Number of Channels: 8 in 16 out
  • AD Conversion:
      Sample Rate: 96.0 kHz
     SignalProcessing: 24 bits
  • DA Conversion:
     Sample Rate: 96.0 kHz
     SignalProcessing: 24 bits
  • Frequency Response: -2 dB / +0 dB (@ +4 dBu, 20 Hz to20 kHz)
  • Total Harmonic Distortion + Noise: 0.05 % or less (Pad: On, Input Gain: +4dBu, 22 to 20000 Hz)
  • Dynamic Range: 110 dB
  • Nominal Input Level:
     -65 to -10 dBu (PAD:Off)
     -45to +10 dBu (PAD: On)
     (1 dB step, Max. +28 dBu)
  • PAD: 20 dB On/Off
  • Input Impedance: 14 k ohms
  • Nominal Output Level: +4 dBu, Max. +22 dBu
  • Output Impedance: 600 ohms
  • Recommended Load Impedance: 10k ohms or greater
  • Residual Noise Level (IHF-A, typ.): -80 dBu or less
  • Equivalent Input Noise Level (E.I.N.): -128 dB
  • Network Latency:
     375micro seconds when using REAC cable only
     (AD - REAC - DA Latency: about 1.2 ms)
  • Connectors:
     Input: 8(XLR type, balanced, phantom power)
     Output: 16 (XLR type, balanced)
     REACConnector: 1(RJ-45 Ether Con type)
     Remote Connector: 1 (RS-232C, DB-9type)
  • Indicators:
      POWER Indicator x 1
     REAC Indicatorx1
     REMOTE Indicator x 1
     MUTE ALL OUTPUTS Indicator x 1
  • Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V,AC 240 V (50/60 Hz)
  • Phantom Power: +48 V / 14 mA (each input, remote controlled)
  • Dimensions: 399.0 (W) x 135.0 (D) x 177.0 (H) mm
  • Weight: 4.5 kg
  • Operation Temperature:
     0 to +40 degrees centigrade
     +32 to +104 degrees Fahrenheit
  • Accessories:
     Power Cord x 1
     REAC ConnectorCoversx 1
     Ferrite Core x 1
     Rubber Foot x 4
     RackMount Kitx 1
     Owner's Manual
  • Options: Cat5e Ethernet Crossover Cable with Neutrik (R) EtherCon (R) Plug:SC-W100S (100 m)

Roland System Group S-0816
Digital Snake, Front of House Unit

OUR PART #  S0816

Product Information:

Compact, portable digital snake. Part of the S-1608 system.

The REAC (Roland Ethernet Audio Communication) protocol is an industry proven, low latency, high quality 24 bit/ 96 kHz audio transport protocol used by the S-0816.  The REAC protocol allows the Digital Snake’s signal to be “split” to as many positions as required such as monitor, broadcast and recording splits using the RSS S-4000-SP or any standard gigabit Ethernet switch.

Roland S-0816 Specifications:

  • Number of Channels: 8 in 16 out
  • AD Conversion:
      Sample Rate: 96.0 kHz
     SignalProcessing: 24 bits
  • DA Conversion:
     Sample Rate: 96.0 kHz
     SignalProcessing: 24 bits
  • Frequency Response: -2 dB / +0 dB (@ +4 dBu, 20 Hz to20 kHz)
  • Total Harmonic Distortion + Noise: 0.05 % or less (Pad: On, Input Gain: +4dBu, 22 to 20000 Hz)
  • Dynamic Range: 110 dB
  • Nominal Input Level:
     -65 to -10 dBu (PAD:Off)
     -45to +10 dBu (PAD: On)
     (1 dB step, Max. +28 dBu)
  • PAD: 20 dB On/Off
  • Input Impedance: 14 k ohms
  • Nominal Output Level: +4 dBu, Max. +22 dBu
  • Output Impedance: 600 ohms
  • Recommended Load Impedance: 10k ohms or greater
  • Residual Noise Level (IHF-A, typ.): -80 dBu or less
  • Equivalent Input Noise Level (E.I.N.): -128 dB
  • Network Latency:
     375micro seconds when using REAC cable only
     (AD - REAC - DA Latency: about 1.2 ms)
  • Connectors:
     Input: 8(XLR type, balanced, phantom power)
     Output: 16 (XLR type, balanced)
     REACConnector: 1(RJ-45 Ether Con type)
     Remote Connector: 1 (RS-232C, DB-9type)
  • Indicators:
      POWER Indicator x 1
     REAC Indicatorx1
     REMOTE Indicator x 1
     MUTE ALL OUTPUTS Indicator x 1
  • Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V,AC 240 V (50/60 Hz)
  • Phantom Power: +48 V / 14 mA (each input, remote controlled)
  • Dimensions: 399.0 (W) x 135.0 (D) x 177.0 (H) mm
  • Weight: 4.5 kg
  • Operation Temperature:
     0 to +40 degrees centigrade
     +32 to +104 degrees Fahrenheit
  • Accessories:
     Power Cord x 1
     REAC ConnectorCoversx 1
     Ferrite Core x 1
     Rubber Foot x 4
     RackMount Kitx 1
     Owner's Manual
  • Options: Cat5e Ethernet Crossover Cable with Neutrik (R) EtherCon (R) Plug:SC-W100S (100 m)
