Shure SLX4L
Receiver with Logic Output

OUR PART #  SLX4L

Selected Model Price: $380.00
List Price: $475.00

Save up to 20%! (Low Price Guarantee)
Select model: (shipping times are approximate)

Recommended Accessories

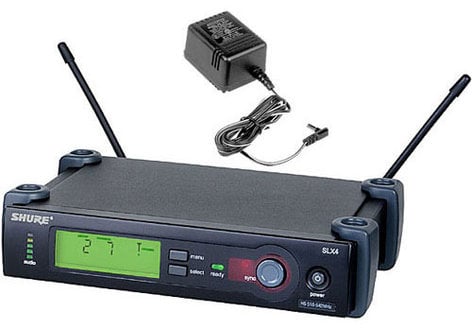

The Shure SLX4L is a UHF wireless microphone receiver for the Shure SLX Series. It allows dual receiver circuits and antennas to compete for the strongest possible reception. The receiver features XLR microphone level, and 1/4" phone line level outputs. An LCD display provides Frequency, Group and Channel information, transmitter battery status, audio level, and more.

Shure SLX4L Features:

  • UHF diversity: dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference
  • Mic & Line Level Output
  • Sync Between Transmitter & Receiver

Shure SLX4L Specifications:

  • Type of Receiver: UHF Diversity Half-Rack Mountable
  • RF Carrier Frequency Range: L4:638 - 662 MHz
  • Approx. Working Range: 300' (100m)
  • Overall Frequency Response: 45Hz - 15kHz +/- 2dB
  • Signal-to-Noise Ratio: > 100 dB A-weighted
  • Number Of Channels: 960 operating frequencies acrossa 24 MHz
  • Type of Output(s): XLR connection: 200 Ohms; 1/4"connection: 1 kOhm
  • Headphone Monitoring: No
  • Power Requirements: 12-18 VDC at 150 mA, supplied by external power supply
  • External power only
  • Display: Backlit LCD
  • Mounting Options: Short and Long Rack-Mount Hardware Included
  • Antenna Type: Dual 1/4 wave BNC type
  • Dimensions: 1.65 x 7.76 x 5.26" (42 x 197 x 134mm)
  • Weight: 1 lb 13 oz (816 g)
Passive antenna splitter to 2 receivers
Shure UA221 Passive antenna splitter to 2 receivers
The Shure UA221 Antenna Splitter/Combiner Kit includes two adapters that can be used as one–input, two–output or two-input, one-output passive antenna splitter/combiners for UC4, SLX4, ULXS4, ULXP4, U4S and U4D receivers. The UA221 Kit ...
144.05 151.00 5
In Stock
Free Shipping Available
In-Line Power Supply
Shure UABIAST In-Line Power Supply
The Shure UABIAST is an in-line adapter that supplies 12V DC bias power over BNC coaxial cable.  Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with ...
68.64 125.00 45
In Stock
Universal hard case
Shure WA610 Universal hard case
Universal Hard Carrying Case- For Shure 1/2 rack wireless systems.
111.60 113.00
In Stock
Free Shipping Available
1/2 Wave Omnidirectional Antenna
Shure UA8 1/2 Wave Omnidirectional Antenna
The Shure UA8 is a 1/2 wave omnidirectional receiver antenna for UHF-R®, ULX®, SLX®, ULX-D®, and BLX4R receivers (frequency range dependent) and PSM transmitters. Features 0°, 45°, and 90° positioning for increased stability.
31.25 32.00
In Stock

Shure SLX4L
Receiver with Logic Output

OUR PART #  SLX4L

Product Information:

The Shure SLX4L is a UHF wireless microphone receiver for the Shure SLX Series. It allows dual receiver circuits and antennas to compete for the strongest possible reception. The receiver features XLR microphone level, and 1/4" phone line level outputs. An LCD display provides Frequency, Group and Channel information, transmitter battery status, audio level, and more.

Shure SLX4L Features:

  • UHF diversity: dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference
  • Mic & Line Level Output
  • Sync Between Transmitter & Receiver

Shure SLX4L Specifications:

  • Type of Receiver: UHF Diversity Half-Rack Mountable
  • RF Carrier Frequency Range: L4:638 - 662 MHz
  • Approx. Working Range: 300' (100m)
  • Overall Frequency Response: 45Hz - 15kHz +/- 2dB
  • Signal-to-Noise Ratio: > 100 dB A-weighted
  • Number Of Channels: 960 operating frequencies acrossa 24 MHz
  • Type of Output(s): XLR connection: 200 Ohms; 1/4"connection: 1 kOhm
  • Headphone Monitoring: No
  • Power Requirements: 12-18 VDC at 150 mA, supplied by external power supply
  • External power only
  • Display: Backlit LCD
  • Mounting Options: Short and Long Rack-Mount Hardware Included
  • Antenna Type: Dual 1/4 wave BNC type
  • Dimensions: 1.65 x 7.76 x 5.26" (42 x 197 x 134mm)
  • Weight: 1 lb 13 oz (816 g)
Passive antenna splitter to 2 receivers
Shure UA221 Passive antenna splitter to 2 receivers
The Shure UA221 Antenna Splitter/Combiner Kit includes two adapters that can be used as one–input, two–output or two-input, one-output passive antenna splitter/combiners for UC4, SLX4, ULXS4, ULXP4, U4S and U4D receivers. The UA221 Kit ...
144.05 151.00 5
In Stock
Free Shipping Available
In-Line Power Supply
Shure UABIAST In-Line Power Supply
The Shure UABIAST is an in-line adapter that supplies 12V DC bias power over BNC coaxial cable.  Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with ...
68.64 125.00 45
In Stock
Universal hard case
Shure WA610 Universal hard case
Universal Hard Carrying Case- For Shure 1/2 rack wireless systems.
111.60 113.00
In Stock
Free Shipping Available
1/2 Wave Omnidirectional Antenna
Shure UA8 1/2 Wave Omnidirectional Antenna
The Shure UA8 is a 1/2 wave omnidirectional receiver antenna for UHF-R®, ULX®, SLX®, ULX-D®, and BLX4R receivers (frequency range dependent) and PSM transmitters. Features 0°, 45°, and 90° positioning for increased stability.
31.25 32.00
In Stock
