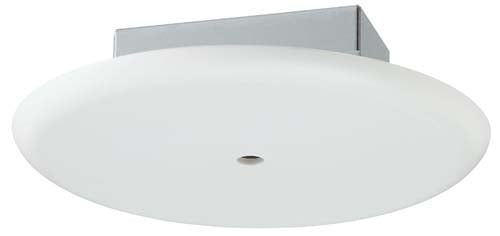

TOA AN-9001 Omnidirectional Ambient Noise Sensing Microphone

OUR PART #: AN9001 MFR #: AN-9001

Copied to clipboard

TOA Series 9000 microphone. The AN-9001 is an electret condenser microphone designed for ambient noise detection. ...Read more

TOA AN-9001 Omnidirectional Ambient Noise Sensing Microphone Image 1
TOA AN-9001 Omnidirectional Ambient Noise Sensing Microphone Image 2
TOA AN-9001 Omnidirectional Ambient Noise Sensing Microphone
Our Price: $77.60
List Price: $96.00
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

TOA Series 9000 microphone. The AN-9001 is an electret condenser microphone designed for ambient noise detection. It is used in conjunction with the AN-001T Ambient Noise Sensor Input module in the 9000 Series system. It can be mounted in a 1-gang electrical box in the ceiling or wall.

Includes:

  • Removable terminal plug (3 pins) x1
  • Box mounting screw (No.6-32UNC × 30) x2
  • Box mounting screw (M4 × 30) x2

Features:

  • Ceiling or wall-mount condenser microphone
  • Fits one gang electrical box
  • Use with AN-001T module or DP-L2 processor

Specifications:

  • Type: Electret condenser microphone
  • Phantom Power: 14 - 26VDC
  • Current Consumption: 7mA (@ 24VDC)
  • Directivity: Omnidirectional (hemispherical)
  • Impedance: 200Ω
  • Rated Sensitivity: -5dB (1kHz @ 0dB = 1V / Pa)
  • Frequency Response: 100 - 10,000Hz
  • Output Terminal: Removable terminal block (3 pins)
  • Operating Temperature: -10℃ to +40℃
  • Finish:
    • Panel: ABS resin, white
    • Frame, Case: Surface-treated steel plate
  • Dimensions: Diameter 130 × 37mm (Depth)
  • Weight: 170g
