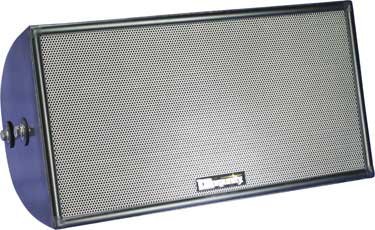

Biamp W2-112 12" Subwoofer 500W

The Community W2-112 subwoofer is a high-output, high-sensitivity, vented low frequency system with extended low frequency response down to 40 Hz. With a single carbon fiber cone 12" cast frame Ferrofluid-cooled driver mounted in a tuned vented enclosure, the W2-112 has a maximum output of 116 dB SPL (123 dB SPL peak).

Engineered for use in permanent installations, the loudspeaker enclosure and faceplate are constructed of multilayer glass composite, providing extreme structural strength. A three-layer Weather-Stop™ grille of stainless steel mesh and open cell foam provides weather-resistance to the internal components, while all exposed hardware is stainless steel or powder-coated aluminum extrusion. Six 1/2-13 mounting points are included.

The W2-112 includes four 1/2-13 threaded inserts for use with Community's optional SSY25KIT mounting accessory. The SSY25KIT includes a 25.75" long grade stainless steel yoke bracket for mounting a W2-112 subwoofer.

Five-year product warranty plus a fifteen-year enclosure warranty.

Community W2-112 12" 500W WET Series II Subwoofer Features:

• All-Weather, Multilayer Glass Composite Curvilinear Enclosure
• Stainless Steel Hardware
• Integral Mounting Points
• Weather-Resistant Stainless Steel Grille
• Ferrofluid-Cooling
• Optional Stainless Steel Mounting Yoke

Community W2-112 12" 500W WET Series II Subwoofer Specifications:

• Format: 12" subwoofer
• Operating Range: 40 Hz - 700 Hz
• Frequency Response: 50 Hz - 160 Hz (±2.5 dB)
• Dispersion (-6 dB): 360º H x 180º V
• Maximum SPL @1m: 116 dB continuous / 123 dB peak
• Sensitivity in SPL (1W/1m, free space): 93 dB (50 Hz - 160 Hz, 1/3 octave)
• Max Power Handling: 200W RMS, 500W Program
• Impedance: (passive) Nominal 8 ohms /Min. 7 ohms @ 200 Hz
• Low Frequency Transducer: 12"
• Enclosure: Hand-laminated fiberglass
• Rigging Provisions: Four 1/2-13 rigging points; yoke bracket included
• Input Connection: 16-2 SJOW (12 ft)
• Grille: Three-layer Weather-Stop
• Dimensions: 13.75" H x 26" W x 14.5" D
• Net Weight: 47.5 lbs (21.5 kg)
