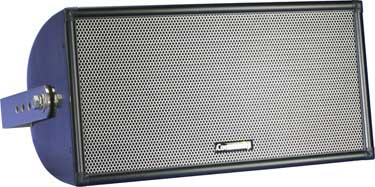

Quasi 3-Way Full-Range Composite Indoor/Outdoor Speaker with 200W Autoformer for 70V/100V Systems in Black with 8" Woofer and 200W Autoformer

OUR PART #:  W2-228T

As a quasi three-way, full-range loudspeaker system, the Community W2-228 provides three-way performance in a compact form-factor.
Learn More
Our Price: $1,567.00
Write the first review.
Community W2-228T
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

As a quasi three-way, full-range loudspeaker system, the Community W2-228 provides three-way performance in a compact form-factor. It includes a 8” LF and 8” MF / LF cones made of carbon fiber. The coaxially mounted 1” HF driver has a weather-resistant, non-metallic, non-resonant polyimide diaphragm. Drivers are Ferrofluid-cooled to improve heat transfer, resulting in higher power and reduced distortion. This model features a built-in 200W autoformer for 70V/100V applications.

The W2-228 is ideal for short throw applications where both full-range reproduction and high weather-resistance are needed, providing an uncompromised musical system in a compact, attractive package.

Engineered for permanent installation, the loudspeaker enclosure and faceplate are constructed of multilayer glass composite, resulting in extreme structural strength. A three-layer Weather-Stop™ grille of stainless steel mesh and open cell foam provides weather-resistance to the internal components, while all exposed hardware is stainless steel or powder-coated aluminum extrusion. A weather-resistant stainless steel mounting yoke is included.

Five-year product warranty plus a fifteen-year enclosure warranty.

Community W2-228 Features:

  • Built-in 200W autoformer for 70V/100V applications
  • All-Weather, Multilayer Glass Composite Enclosure
  • Weather Inert Driver Diaphragms
  • Stainless Steel Hardware
  • Integral Mounting Points
  • High Power Passive Crossover
  • Ferrofluid-Cooling
  • Weather-Resistant Stainless Steel Grille
  • Stainless Steel Mounting Yoke Included

Community W2-228 Specifications:

  • Format: Quasi three-way, wide angle, full-range
  • Operating Range: 70Hz-18kHz
  • Frequency Response: 80Hz-15kHz (+/-3dB)
  • Dispersion (-6dB): 85 H x 85 V degrees
  • Max SPL @ 1m: 120 dB continuous/127 dB peak
  • Crossover Frequency: 2 kHz
  • Sensitivity in SPL (1W/1m, free space):
    • 96dB(100Hz-13kHz, 1/3 octave)
    • 96dB (250Hz-4kHz, speech range)
  • Max Power Handling: 250W RMS, 600W program
  • Autoformer version:
    • 70V taps: 200W, 100W, 50W, 25W
    • 100V taps: 200W, 100W, 50W
  • Impedance (passive): Nominal 4 ohms/3.2 ohms at 180Hz
  • Low Frequency Transducer: 8"
  • Low/Mid Frequency Transducer: 8"
  • High Frequency Transducer: 1"
  • Enclosure: Hand-laminated fiberglass
  • Rigging Provisions: Two 1/2-13 rigging points; yoke bracket included
  • Input Connection: 16-2 SJOW (12')
  • Grille: Three-layer Weather-Stop
  • Dimensions: 10.13" H x 20" W x 11.5" D
  • Net Weight: 36 lbs
