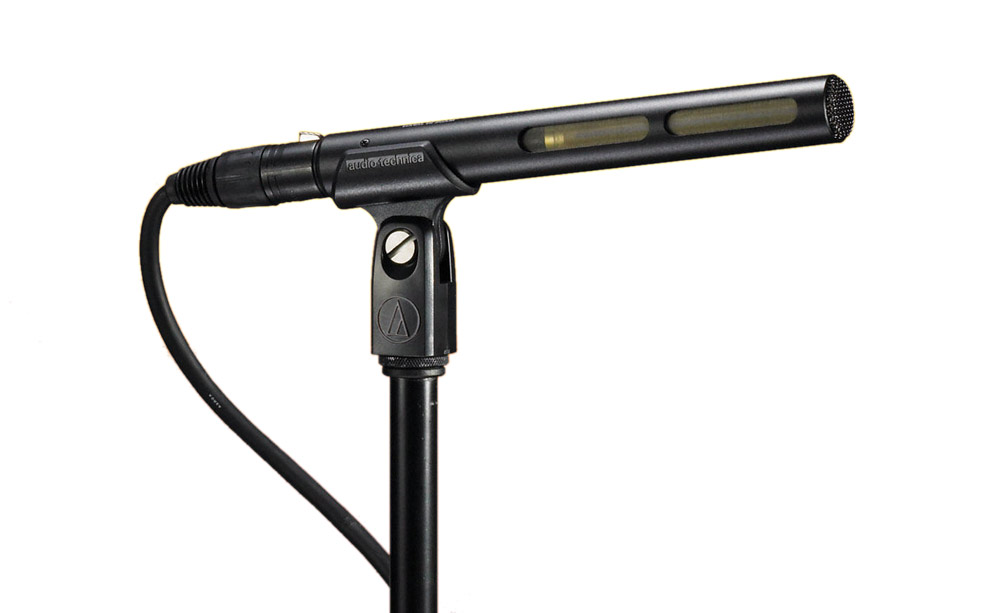

Audio-Technica AT875R Short Shotgun Microphone with Line + Gradient Polar Pattern

A short shotgun mic that's ideal for DV camcorder mounting

Audio-Technica’s AT875R is a short (7”) shotgun condenser mic engineered especially for video production and Broadcast (electronic news gathering/electronic field production - ENG/EFP) audio capture. Audio-Technica’s shortest shotgun microphone, and at 2.8oz., it mounts conveniently on a DV camcorder without adding noticeable heft. Great for use with compact digital cameras as well, this high-performance mic offers a narrow acceptance angle of line + gradient design. It also features smooth, natural-sounding on-axis audio quality and excellent off-axis rejection of sound from the sides and rear of mic. It operates on phantom power exclusively.

Applications

ENG/EFP: Video production / Broadcast • More

Includes

• AT875R
• AT8405a stand clamp for ⅝"-27 threaded stands
• ⅝"-27 to ⅜"-16 threaded adapter
• Windscreen
• Soft protective pouch

Features

• Short length ideal for DV camcorders/compact digital cameras
• Narrow acceptance angle for long-distance sound pickup
• Tailored response minimizes camera and handling noise
• Excellent sound rejection from sides/rear of mic
• Operates on phantom power exclusively

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Line + gradient
• Frequency Response: 90 - 20,000Hz
• Open Circuit Sensitivity: -30dB (31.6mV) re 1V @ 1Pa
• Impedance: 100Ω
• Maximum Input Sound Level: 127dB SPL, 1kHz @ 1% T.H.D.
• Dynamic Range (typical): 107dB, 1kHz @ Max SPL
• Signal-to-Noise Ratio: 74dB, 1kHz @ 1Pa
• Phantom Power Requirements: 11-52VDC, 2mA typical
• Weight: 2.8oz.
• Dimensions: 6.89" long, 0.83" diameter
• Output Connector: Integral 3-pin XLRM-type
• Note: further information can be found within the items located under the "Documentation" tab above.
