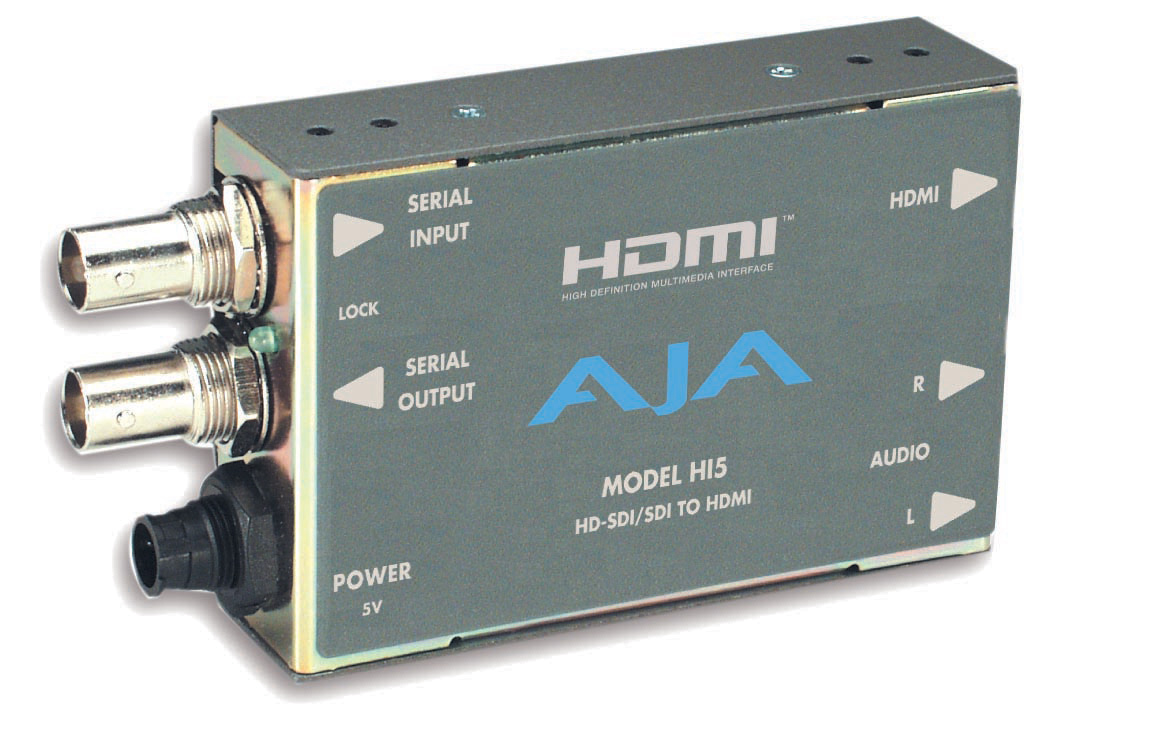

AJA Video Systems Inc Hi5
HD-SDI/SDI to HDMI Video and Audio Mini Converter with Power Supply


The AJA Video Systems Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors.
Learn More
Our Price: $345.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


AJA Video Systems Inc Hi5
In Stock

Similar Products

The AJA Video Systems Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SDI/HD-SDI audio is supported via the HDMI output, giving you a convenient single cable audio/video connection.  The Hi5 also provides 2-channel RCA-style audio outputs for separate audio monitoring. The Hi5 also provides an equalized looping SDI/HD-SDI output (linked into the SDI input) that's useful in connecting additional equipment, or for daisy-chaining multiple monitors to the same SDI-HD-SDI source. An HDMI cable and power supply are included.

AJA Hi5 Features:

  • SDI input and equalized loop output
  • HDMI 1.2 output
  • 2 channel RCA for separate audio
  • 8 channel embedded audio support

AJA Hi5 Specifications:

  • Input: SMPTE-259/292/296 SDI/HD-SDI, 1x BNC
  • Input Formats: 525i, 625i, 720p 50/59.94/60, 1080i50/59.94/60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30
  • Outputs: HDMI with embedded audio, Audio - 2-channel RCA-style, 1 equalized looping SDI/HD-SDI output, 1 BNC
  • Power: 5VDC Regulated, 3 Watts (power supply is included)
  • Size: 4.6" x 2.4" x 1"
