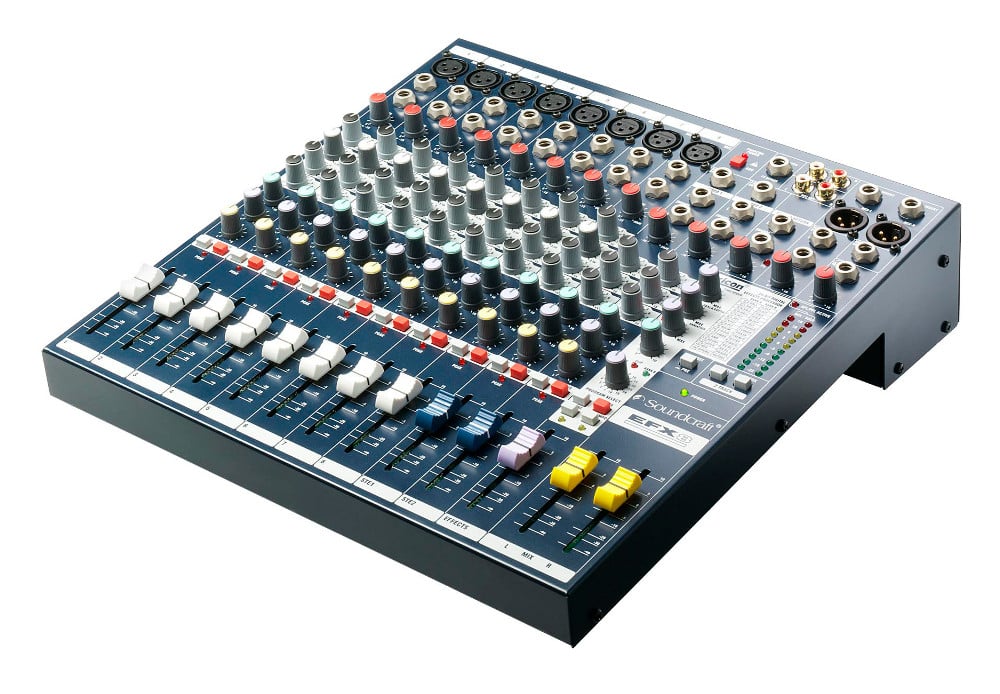

Soundcraft EFX8 8-Channel Analog Mixer with Lexicon Effects

The Soundcraft EFX™ Series combines all the features of the popular Soundcraft EPM™ mixer with a built-in 24-bit, digital Lexicon® effects processor, expanding the Soundcraft low-cost, multipurpose compact range. Recommended for houses of worship, music venues, musicians/bands, and theaters, the Soundcraft EFX8 mixer uses the same AudioDNA® processor featured in many of the Digitech® and Lexicon outboard equipment including the highly respected Lexicon MX400 processor. The Effects section fits neatly into the mixer’s compact framework, with 8 mono input variants and 2 stereo channels and an effects send on each channel. There are 32 effects to choose from with a tap tempo function, 3 effects parameter controls and a user effects setting store facility. An effects channel level-clip LED and Mute function gives the user even more flexibility.

Features

• 8 mono inputs, 2 stereo channels
• Built-in 24-bit Lexicon digital effects processor
• 32 FX settings
• Tap tempo and FX setting store function
• 3-band EQ with a swept mid on mono channels, 3-band EQ on stereo ins

Specifications

• Frequency Response
  • Mic / Line Input to any Output: +/-1.5dB, 20Hz – 20kHz
• T.H.D.
  • Mic Sensitivity -30dBu, +14dBu @ Mix output: < 0.02% @ 1kHz
• Noise
  • Mic Input E.I.N. (maximum gain): -127dBu (150Ohm source)
  • Aux, Mix and Masters (@ 0dB, faders down): < -84dBu
• Crosstalk (@ 1kHz)
  • Channel Mute: > 90dB
  • Fader Cut-off (rel +10 mark): > 90dB
  • Aux Send Pots Offness: > 83dB
• EQ (Mono inputs)
  • HF: 12kHz, +/-15dB
  • MF (swept): 150Hz – 3.5kHz, +/-15dB
  • LF: 80Hz, +/-15dB
  • Q: 1.5
• EQ (Stereo inputs)
  • HF: 12kHz, +/-15dB
  • MF: 720Hz, +/-15dB
  • LF: 80Hz, +/-15dB
• Power Consumption
  • Less than 35W
• Operating Conditions
  • Temperature Range: 5°C to 40°C
• Input & Output Levels
  • Mic Input: +15dBu max
  • Line Input: +30dBu max
  • Stereo Input: +30dBu max
  • Mix Output: +20dBu max
  • Headphones (@150Ohms): 300mW
• Input & Output Impedances
  • Mic Input: 2kOhms
  • Line Input: 10kOhms
  • Stereo Input: 65kOhms (stereo), 35kOhms (mono)
  • Outputs: 150Ohms (balanced), 75Ohms (unbalanced)
