Yamaha 02-DSKSYS-D USB Wireless Mic Desktop System

OUR PART #: 02-DSKSYS-D MFR #: 02DSKSYSD

Copied to clipboard

Revolabs xTag Digital System single microphone solo desktop system for use with a personal computer.. ...Read more

Yamaha 02-DSKSYS-D USB Wireless Mic Desktop System Image 1
eXgDYQVgKJE
1 Video
Yamaha 02-DSKSYS-D USB Wireless Mic Desktop System
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Revolabs xTag Digital System single microphone solo desktop system for use with a personal computer.. Single-Channel, 1 lapel mic, 1 USB-only I/O, 128-bit encrypted, full duplex earpiece support. The Solo Desktop Wireless Conference Microphone System brings unmatched audio performance to the individual work space.

Includes:

  • 1x Desktop USB Charger
  • 1x Proprietary Microphone (wearable)
  • 1x Lanyard - Black
  • 1x Earbud
  • 1x Desktop Manual

Specifications:

  • Dimensions, (L, W, H) and Weight:

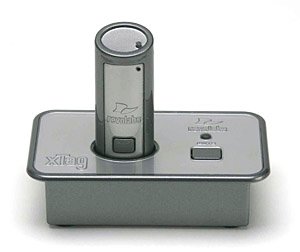

    • XTag Charger Base: 3.9” (10 cm) x 2.4” (6 cm) x 1.0” (2.56 cm), 0.5 lb (0.23 kg)
    • Wireless Microphone: 0.9” (2.4 cm) x 0.8” (1.95 cm) x 2.6” (6.68 cm), 0.05 lb (0.02 kg)
  • Shipping Weight 1.5 lbs (0.68 kg)
  • Radio Frequency:
    • 02-DSKSYS-D 1.92 to 1.93 GHz (UPCS North America)
    • 04-DSKSYSEU-D 1.88 to 1.90 GHz (DECT EU)
  • Connectors:
    • XTag Charger Base
    • Mini USB – 5 pin connector, USB 2.0
  • Wireless Microphone:
    • Power – proprietary 4 pin connector
    • Audio – 2.5mm mono audio
    • Microphone pattern Unidirectional – cardioid
    • Battery Lithium Polymer, up to 8 hours talk time
    • Charge Time 2.0 hours approx.
    • Range 65’ (20 meters) approx. (no obstructions)
    • Audio Bandwidth 100-7000 Hz
    • Security 128-bit DSAA (DECT Standard Authentication Algorithm) authentication, 64 bit DECT Standard Cipher
  • Environmental Requirements:
    • Temperature: 40° to 105° F (5° to 40° C)
    • Operating Humidity: 20% to 85%

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
