TV One 1T-C2-520
CORIO2 DVI-I to SD/HD-SDI Converter

OUR PART #  1T-C2-520

Our Price: $995.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

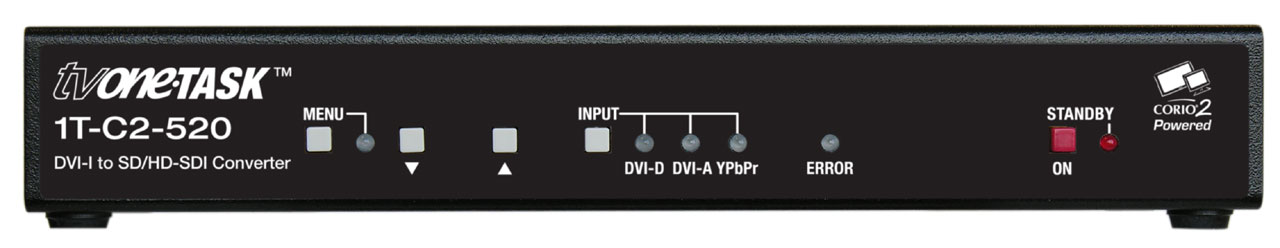

The tvOne 1T-C2-520 CORIO2 DVI-I to SD/HD-SDI high-performance converter transforms DVI-D 720p or 1080i HD signals to HD-SDI for broadcast and professional use. An analog YPbPr or RGBHV signal can also be converted to HD-SDI. It also converts a standard analog YUV signal at 525i or 625i to SD-SDI. No scaling is performed within the unit so the input vertical rates must be exact (per the chart inn the spec sheet found under "Documentation" tab). The 1T-C2-520 is controlled via front-panel buttons and an onscreen display. The unit is housed in a metal case designed for use on desktops. An optional Single/Dual Rackmount Kit is available.

tvOne 1T-C2-520 CORIO2 DVI-I to SD/HD-SDI Converter Features:

  • Fully digital operation for SD-SDI and HD-SDI
  • Serial digital video output up to 1.485Gbits/sec
  • HD-SDI output resolution matches DVI input
  • 525i/625i YUV converts to SD-SDI
  • RS-232 Interface
tvOne 1T-C2-520 CORIO2 DVI-I to SD/HD-SDI Converter Specifications:
  • DVI-I Video Input:
    • DVI-D or RGBHV
    • 1x via DVI-I Connector
  • Component Video Input:
    • YUV or YPbPr
    • 1x via 3x BNC Connectors
  • SD/HD-SDI Video Output:
    • SMPTE259M @ 270Mb/s, SMPTE292M to 1485Mb/s
    • 1x via BNC Connector
  • Control Method:
    • Onscreen display
    • Front Panel Buttons
  • Dimensions: 1.2" H x 7.87" W x 3.5" D (30 x 200 x 90 mm)
  • Net Weight: 1.19 lb (0.54 kg)
  • Warranty: Limited 5 Years Parts and Labor

TV One 1T-C2-520
CORIO2 DVI-I to SD/HD-SDI Converter

OUR PART #  1T-C2-520

Product Information:

The tvOne 1T-C2-520 CORIO2 DVI-I to SD/HD-SDI high-performance converter transforms DVI-D 720p or 1080i HD signals to HD-SDI for broadcast and professional use. An analog YPbPr or RGBHV signal can also be converted to HD-SDI. It also converts a standard analog YUV signal at 525i or 625i to SD-SDI. No scaling is performed within the unit so the input vertical rates must be exact (per the chart inn the spec sheet found under "Documentation" tab). The 1T-C2-520 is controlled via front-panel buttons and an onscreen display. The unit is housed in a metal case designed for use on desktops. An optional Single/Dual Rackmount Kit is available.

tvOne 1T-C2-520 CORIO2 DVI-I to SD/HD-SDI Converter Features:

  • Fully digital operation for SD-SDI and HD-SDI
  • Serial digital video output up to 1.485Gbits/sec
  • HD-SDI output resolution matches DVI input
  • 525i/625i YUV converts to SD-SDI
  • RS-232 Interface
tvOne 1T-C2-520 CORIO2 DVI-I to SD/HD-SDI Converter Specifications:
  • DVI-I Video Input:
    • DVI-D or RGBHV
    • 1x via DVI-I Connector
  • Component Video Input:
    • YUV or YPbPr
    • 1x via 3x BNC Connectors
  • SD/HD-SDI Video Output:
    • SMPTE259M @ 270Mb/s, SMPTE292M to 1485Mb/s
    • 1x via BNC Connector
  • Control Method:
    • Onscreen display
    • Front Panel Buttons
  • Dimensions: 1.2" H x 7.87" W x 3.5" D (30 x 200 x 90 mm)
  • Net Weight: 1.19 lb (0.54 kg)
  • Warranty: Limited 5 Years Parts and Labor
