PCI Express Card 24Bit 2x64Ch


Our Price: $1,799.00
List Price: $2,099.00
You save 14%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

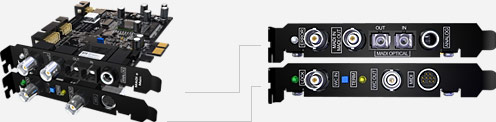

PCI Express card with MADI interface. It offers all the advantages of the MADI format - 64 channels of 24-bit audio at a sample rate of up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Transmission is done via a single line, either coaxial with BNC plugs or by fiber cable. The card features support of higher sample rates than 96 kHz, more features in TotalMix (phase and internal loopback per channel, +6 dB gain for the hardware outputs), and the direct support of the Time Code Option. HDSPe MADI provides even lower latencies, making the card the perfect partner for live recording and live mixing applications. The analog monitor output is equipped with the low-latency converter technology of the ADI-8 QS, thus guaranteeing stunning SNR and THD values. RME's SteadyClock(TM) is a unique sync and clock technology allows the HDSP MADI to control the sample rate freely on its own.


  • PCI Express Interface
  • 64 Input channels / 64 Output channels
  • 1 x MADI I/O (optical and coaxial)
  • 2 x MIDI I/O
  • Stereo Analog Out
  • Word Clock I/O
  • TotalMix hardware mixer
  • optional: HDSP TCO
