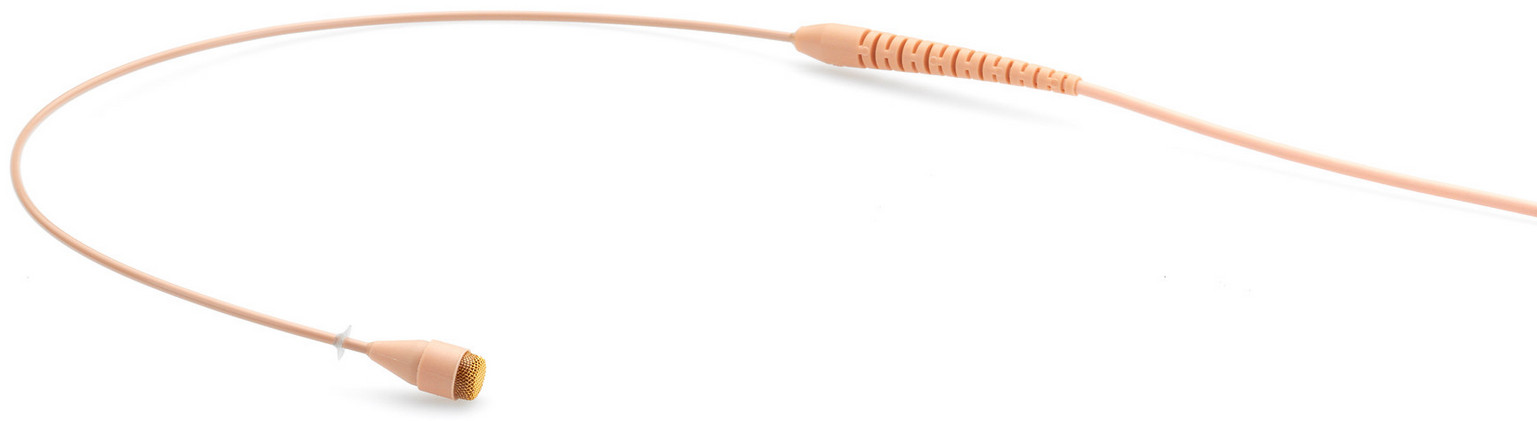

DPA Microphones MMB4066-F
Miniature Omnidirectional Boom Microphone in Beige

OUR PART #:  MMB4066-F

The DPA Microphones MMB4066-F is a miniature omnidirectional boom microphone that is designed for use with their AHM6000 adjustable headband mount.
Learn More
Our Price: $490.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones MMB4066-F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones MMB4066-F is a miniature omnidirectional boom microphone that is designed for use with their AHM6000 adjustable headband mount. When combined, the headband mount and mic comprise the 4066 headband microphone.

DPA Microphones MMB4066-F Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element withvertical diaphragm
  • Frequency range, ± 2 dB:
    • Soft Boost Grid: 20 Hz – 20 kHz ±2 dB, 3 dB soft boost at 8 – 20 kHz
    • High boost grid: 20 Hz – 20 kHz ±2 dB, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±2 dB: Nominally 6 mV/Pa ±3 dB at 1 kHz
  • Equivalent noise level A-weighted: Typ. 26 dB(A)re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level ITU-R BS.468-4: Typ. 38 dB(max. 40 dB)
  • Total harmonic distortion (THD): 123 dB SPL peak(<1% THD)
  • Max. SPL, peak before clipping: 144 dB SPL peakbefore clipping
  • Output impedance: 30 – 40 ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Weight: 14 g (0.5 oz) incl. cable and MicroDot connector
