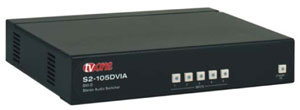

OUR PART # S2-105DVIA
S2-105DVIA Switcher may be connected to any of the C2-2000 series Switcher/Down Converters to provide 5 additional DVI-D Video inputs plus 5 stereo audio inputs.
The product connects to the C2 unitâ€™s rear panel OPTION Connector via an OPTION cable and isfully integrated into the control system of the C2 unit.
Multiple S2 expansion switchers of diverse formatsmay be interfaced to a single C2 product*. The Windows Control Panel recognizes the C2 unit and all theconnected Input Expansion Switchers as a single Multi-format Seamless Switcher. This fully customizable approach allows the user to choose the appropriate C2 host product and S2 Input Expansion Switcher to meet a specific need.
S2 video models are available with or without stereo audio (balanced or unbalanced). In addition to the video models, a stereo audio only model is available. The units are housed in a desktop case and an optional Single/Dual Rackmount Kit is available. A single 5-Input S2 can be powered via the Options Connector, but external power is required for additional units connectedto the C2.
Standalone Operation - S2 Series Switchers can also operate as standalone video and audio switchers. Input selection is by front panel Push Buttons, IR Remote Control or via RS-232.
