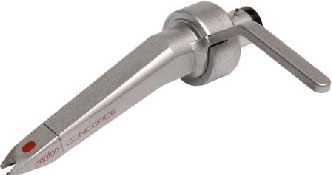

Ortofon Inc CC-PRO-TWIN
Concorde Pro Cartridge (1 Pair)

OUR PART #:  CC-PRO-TWIN

The Pro cartridge provides a balance of sound quality and tracking ability - good for any style of music.  Features a flat, transparent sound and excellent handling ability.
Learn More
Our Price: $203.99
List Price: $285.99
You save 29%!
Write the first review.
Ortofon Inc CC-PRO-TWIN
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Pro cartridge provides a balance of sound quality and tracking ability - good for any style of music.  Features a flat, transparent sound and excellent handling ability.  Includes two carridge bodies & 2 pre-installed styli.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 5mV
  • Channel balance at 1kHz: 1.5 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3 dB: 20Hz-20kHz
  • Frequency response: 20Hz-18kHz 3dB/-2dB
  • Tracking ability at 315Hz at recommended tracking force: 70 mM
  • Compliance, dynamic, lateral: 7mM/mN
  • Stylus type: spherical
  • Stylus tip radius: R 18 mM
  • Tracking force range: 3.0-5.0 g (30-50 mN)
  • Tracking force recommended: 4.0 g (40 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 750 Ohms
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhms
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18.5 g
  • Replacement stylus unit: Pro
Replacement Stylus for Pro Cartridge
Ortofon Inc STYLUS-PRO Replacement Stylus for Pro Cartridge
Replacement stylus for Pro cartridge (Concorde or OM).
