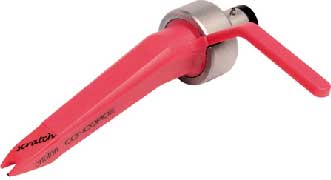

Ortofon Inc CC-SCRATCH-TWIN
Concorde Scratch Cartridge, (1 Pair)

OUR PART #  CC-SCRATCH-TWIN

Our Price: $234.99
List Price: $328.99
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

For DJs requiring increased tracking ability, the Scratch features a reinforced rubber suspension, solid bass reproduction and extended highs.  Includes two carridge bodies & 2 pre-installed styli.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 7mV
  • Channel balance at 1kHz: 1.5 dB
  • Channel separation at 1kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3 dB: 20Hz-20kHz
  • Frequency response: 20Hz-15kHz 3dB/-2dB
  • Tracking ability at 315Hz at recommended tracking force: 80 mM
  • Compliance, dynamic, lateral: 6mM/mN
  • Stylus type: spherical
  • Stylus tip radius: R 18 mM
  • Tracking force range: 3.0-5.0 g (30-50 mN)
  • Tracking force recommended: 4.0 g (40 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 750 Ohms
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhms
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18.5 g
  • Replacement stylus unit: Scratch

Ortofon Inc CC-SCRATCH-TWIN
Concorde Scratch Cartridge, (1 Pair)

OUR PART #  CC-SCRATCH-TWIN

Product Information:

For DJs requiring increased tracking ability, the Scratch features a reinforced rubber suspension, solid bass reproduction and extended highs.  Includes two carridge bodies & 2 pre-installed styli.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 7mV
  • Channel balance at 1kHz: 1.5 dB
  • Channel separation at 1kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3 dB: 20Hz-20kHz
  • Frequency response: 20Hz-15kHz 3dB/-2dB
  • Tracking ability at 315Hz at recommended tracking force: 80 mM
  • Compliance, dynamic, lateral: 6mM/mN
  • Stylus type: spherical
  • Stylus tip radius: R 18 mM
  • Tracking force range: 3.0-5.0 g (30-50 mN)
  • Tracking force recommended: 4.0 g (40 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 750 Ohms
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhms
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18.5 g
  • Replacement stylus unit: Scratch
