Ortofon Inc CC-DJS-TWIN

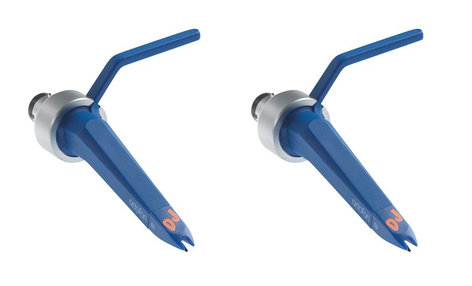

Concorde DJ S Cartridge (1 Pair)

OUR PART #  CC-DJS-TWIN

Our Price: $244.99
List Price: $342.99
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

This cartridge features improved tracking, alongside accrate sound reproduction.  Features a low-wear stylus design, provides excellent groove handling (even when less weight is applied).  A favorite among DJs the world around and recommended for any style of music.  Includes two carridge bodies & 2 pre-installed styli.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 6mV
  • Channel balance at 1kHz: 2 dB
  • Channel separation at 1kHz: 23 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3 dB: 20Hz-20kHz
  • Frequency response: 20Hz-18kHz 3/+/- 2dB
  • Tracking ability at 315Hz at recommended tracking force: 80 mM
  • Compliance, dynamic, lateral: 9mM/mN
  • Stylus type: spherical
  • Stylus tip radius: R 18 mM
  • Tracking force range: 2.0-4.0 g (20-40 mN)
  • Tracking force recommended: 3.0 g (30 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 750 Ohms
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhms
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 5 g
  • Replacement stylus unit: DJ S

Ortofon Inc CC-DJS-TWIN
Concorde DJ S Cartridge (1 Pair)

OUR PART #  CC-DJS-TWIN

Product Information:

This cartridge features improved tracking, alongside accrate sound reproduction.  Features a low-wear stylus design, provides excellent groove handling (even when less weight is applied).  A favorite among DJs the world around and recommended for any style of music.  Includes two carridge bodies & 2 pre-installed styli.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 6mV
  • Channel balance at 1kHz: 2 dB
  • Channel separation at 1kHz: 23 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3 dB: 20Hz-20kHz
  • Frequency response: 20Hz-18kHz 3/+/- 2dB
  • Tracking ability at 315Hz at recommended tracking force: 80 mM
  • Compliance, dynamic, lateral: 9mM/mN
  • Stylus type: spherical
  • Stylus tip radius: R 18 mM
  • Tracking force range: 2.0-4.0 g (20-40 mN)
  • Tracking force recommended: 3.0 g (30 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 750 Ohms
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhms
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 5 g
  • Replacement stylus unit: DJ S
