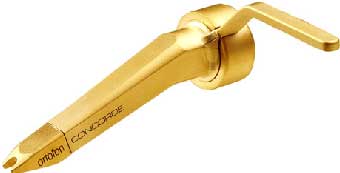

Ortofon Inc CC-GOLD-TWIN
Concorde Gold Cartridge (1 Pair)

OUR PART #:  CC-GOLD-TWIN

Our Price: $366.99
List Price: $513.99
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ortofon Inc CC-GOLD-TWIN
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Concorde Gold was released to commemorate the release of Technics' limited edition SL-1200LTD & SL-1200GLD as a compliment to their attractive design and to provide the best DJ cartridge sound quality.  Includes two carridge bodies & 2 pre-installed styli.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 6mV
  • Channel balance at 1kHz: 1.5 dB
  • Channel separation at 1kHz: 23 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3 dB: 20Hz-22kHz
  • Frequency response: 20Hz-20kHz +/- 2dB
  • Tracking ability at 315Hz at recommended tracking force: 80 mM
  • Compliance, dynamic, lateral: 7mM/mN
  • Stylus type: special elliptical
  • Stylus tip radius: r/R 13/25 mM
  • Tracking force range: 2.0-5.0 g (20-50 mN)
  • Tracking force recommended: 3.0 g (30 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 750 Ohms
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhms
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18.5 g
  • Replacement stylus unit: Gold
