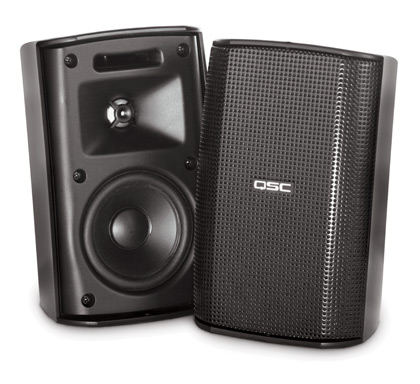

QSC AD-S32T-BLACK
Loudspeaker 3" 30W Black

OUR PART #  AD-S32T-BLACK

Our Price: $132.00
(Low Price Guarantee)

This product must be purchased in multiples of 2

Qty: Free Shipping Available

In Stock

NOTE: This product is priced PER SPEAKER, but is sold AS A PAIR.

The AcousticDesign Series of installation loudspeaker products from QSC Audio expands with the new AD-S32T surface mount loudspeaker system. Designed for background and general purpose audio playback, the new AD-S32T is attractive, compact and acoustically matched to the entire AD Series. Rated for 30 Watts continuous power handling and able to handle 120 Watt peaks, it is a fully featured loudspeaker system in a very small package.

The 3" woofer is equipped with a polypropylene cone for protection in humid environments. The driver features a synthetic rubber surround and is optimized to deliver useable low frequency extension below 70 Hz. An additional humbucking magnet provides AV shielding. The high-frequency device is a 0.75" dome tweeter with a titanium diaphragm and a cloth surround. The dispersion of the high frequency is 100° by 100°. The AD-S32T measures 85 dB SPL sensitivity.

Features:

  • 3" polypropylene cone woofer
  • 0.75" titanium dome tweeter
  • 30 Watts continuous power handling, 120 watts peak
  • 70/100 V multitap transformer with 8 ohm bypass
  • Includes ball mount assembly and yoke mount
  • Black color (also available in white)

Specifications:

  • Configuration: Compact two way, ported enclosure
  • Low-frequency transducers: 3" (7.6 cm) weather resistant, polypropylene cone woofer
  • High-frequency transducers: 0.75" titanium dome tweeter
  • Frequency Response (-6 dB): 73 Hz - 20 kHz
  • Useable Frequency Range (-10 dB): 65 Hz - 20 kHz
  • Calculated Peak Output: 105 dB SPL
  • Calculated Continuous Output: 99 dB SPL
  • Nominal Impedance: 8 ohms switchable
  • RMS Power Handling: 30 W (100 hours IEC)
  • Recommended Max Amp Power: 60 W RMS
  • Sensitivity: 85 dB, 2.83 V, 1 m, free space (4 pi)
  • Nominal Coverage: 100° x 100°
  • Transformer type: Custom low distortion laminated core, wide bandwidth design
  • Taps: 70 V: 30, 15, 7.5, 3.8 W / 100 V: 30, 15, 7.5 W / 8 ohm bypass
  • Environmental: Exceeds Mil Spec 810 for humidity, salt spray and dust; IEC 60529 IP-X3 splash rating
  • Agency Rating: Transformer is Listed UL1876
  • Material: Injection molded, weather resistant high impact polystyrene
  • Finish: Black
  • Grille: Heavy-duty powder coated aluminum
  • Connectors: Screw terminals
  • Mounting Hardware: Ball mount assembly; yoke mount bracket included
  • Weight: 4lb net, 10 lb shipping (pair)

Click to download

QSC AD-S32T-BLACK
Loudspeaker 3" 30W Black

OUR PART #  AD-S32T-BLACK

Product Information:

NOTE: This product is priced PER SPEAKER, but is sold AS A PAIR.

The AcousticDesign Series of installation loudspeaker products from QSC Audio expands with the new AD-S32T surface mount loudspeaker system. Designed for background and general purpose audio playback, the new AD-S32T is attractive, compact and acoustically matched to the entire AD Series. Rated for 30 Watts continuous power handling and able to handle 120 Watt peaks, it is a fully featured loudspeaker system in a very small package.

The 3" woofer is equipped with a polypropylene cone for protection in humid environments. The driver features a synthetic rubber surround and is optimized to deliver useable low frequency extension below 70 Hz. An additional humbucking magnet provides AV shielding. The high-frequency device is a 0.75" dome tweeter with a titanium diaphragm and a cloth surround. The dispersion of the high frequency is 100° by 100°. The AD-S32T measures 85 dB SPL sensitivity.

Features:

  • 3" polypropylene cone woofer
  • 0.75" titanium dome tweeter
  • 30 Watts continuous power handling, 120 watts peak
  • 70/100 V multitap transformer with 8 ohm bypass
  • Includes ball mount assembly and yoke mount
  • Black color (also available in white)

Specifications:

  • Configuration: Compact two way, ported enclosure
  • Low-frequency transducers: 3" (7.6 cm) weather resistant, polypropylene cone woofer
  • High-frequency transducers: 0.75" titanium dome tweeter
  • Frequency Response (-6 dB): 73 Hz - 20 kHz
  • Useable Frequency Range (-10 dB): 65 Hz - 20 kHz
  • Calculated Peak Output: 105 dB SPL
  • Calculated Continuous Output: 99 dB SPL
  • Nominal Impedance: 8 ohms switchable
  • RMS Power Handling: 30 W (100 hours IEC)
  • Recommended Max Amp Power: 60 W RMS
  • Sensitivity: 85 dB, 2.83 V, 1 m, free space (4 pi)
  • Nominal Coverage: 100° x 100°
  • Transformer type: Custom low distortion laminated core, wide bandwidth design
  • Taps: 70 V: 30, 15, 7.5, 3.8 W / 100 V: 30, 15, 7.5 W / 8 ohm bypass
  • Environmental: Exceeds Mil Spec 810 for humidity, salt spray and dust; IEC 60529 IP-X3 splash rating
  • Agency Rating: Transformer is Listed UL1876
  • Material: Injection molded, weather resistant high impact polystyrene
  • Finish: Black
  • Grille: Heavy-duty powder coated aluminum
  • Connectors: Screw terminals
  • Mounting Hardware: Ball mount assembly; yoke mount bracket included
  • Weight: 4lb net, 10 lb shipping (pair)

Click to download
