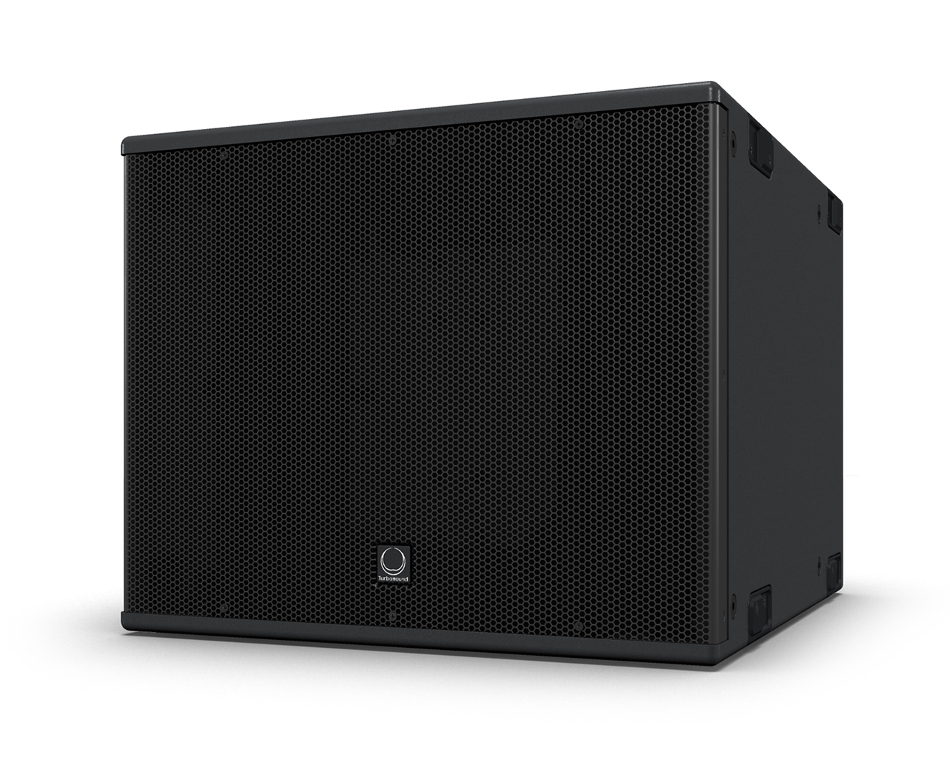

Turbosound B-15
NuQ Series 15" 400W (8 Ohms) Passive Subwoofer

OUR PART #  B-15

Our Price: $869.99
List Price: $1,000.49
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Turbosound B-15 is a front-loaded single 15" subwoofer enclosure designed to work in conjunction with Turbosound LMS series loudspeaker management systems to provide optimum system performance. NuQ systems can be controlled over a BVNet network using TurboDrive control software.

The B-15 consists of a custom 15" neodymium low frequency driver in compact vented enclosure optimally tuned for extended low frequency response. The cabinet includes a foam-backed perforated steel mesh grille, and is finished in black or optional white semi-matte textured paint. Heavy duty corner protectors are fitted, and recessed flush handles are provided for easy lifting and carrying. An integral pole mount socket is fitted to the top of the enclosure to allow two-way cabinets to be mounted at the correct height above the subwoofer. Internal M10 rigging points are fitted on the sides, top and bottom to enable rigging in fixed installations.

A rear panel connector plate carries two Speakon NL4 connectors for loop in and loop out connections to additional enclosures. The B-15 can be fitted with optional heavy duty wheels to aid transportation.

Turbosound B-15 Features:

  • Front loaded subwoofer for portable PA applications
  • 400 Watts continuous, 1,600 Watts peak power
  • 15” neodymium low frequency driver
  • Low distortion bass reflex port design
  • 18 mm (3/4”) birch plywood enclosure with hardwearing semi matte black paint finish
  • Integral M10 rigging points for ease of installation
  • 35 mm pole mount to support satellite speaker
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound B-15 Specifications:

  • Components:  1 x 15" (381 mm) LF Driver
  • Frequency Response:  45 Hz - 150 Hz ± 3dB, 38 Hz – 150 Hz ± 10dB
  • Sensitivity (1 W @ 1 M):  100dB (1 Watt @ 1 Meter)
  • Power Handling:  400 Watts Continuous, 1,600 Watts Peak
  • Calculated Max SPL:  126 dB Continuous, 132 dB Peak
  • Nominal Impedance:  8 Ohms
  • Construction:  18 mm (3/4") Birch Plywood, Finished in Semi Matte Black Paint. Eight Recessed Carrying Handles. Integral Pole Mount Socket
  • Grille:  Powder Coated Perforated Steel Backed with Reticulated Foam
  • Connectors:  2x Neutrik speakON NL4, wired Pin1+: Positive, Pin1-: Negative; Pin 2+ and Pin 2-: N/C
  • Rigging:  M10 Rigging Points for use with M10 Eyebolts
  • Dimensions (HxWxD):  18.3" x 22.6" x 24.4" (464mm x 574mm x 620mm)
  • Net Weight:  77 lbs (35 kg)

Click to download

Turbosound B-15
NuQ Series 15" 400W (8 Ohms) Passive Subwoofer

OUR PART #  B-15

Product Information:

The Turbosound B-15 is a front-loaded single 15" subwoofer enclosure designed to work in conjunction with Turbosound LMS series loudspeaker management systems to provide optimum system performance. NuQ systems can be controlled over a BVNet network using TurboDrive control software.

The B-15 consists of a custom 15" neodymium low frequency driver in compact vented enclosure optimally tuned for extended low frequency response. The cabinet includes a foam-backed perforated steel mesh grille, and is finished in black or optional white semi-matte textured paint. Heavy duty corner protectors are fitted, and recessed flush handles are provided for easy lifting and carrying. An integral pole mount socket is fitted to the top of the enclosure to allow two-way cabinets to be mounted at the correct height above the subwoofer. Internal M10 rigging points are fitted on the sides, top and bottom to enable rigging in fixed installations.

A rear panel connector plate carries two Speakon NL4 connectors for loop in and loop out connections to additional enclosures. The B-15 can be fitted with optional heavy duty wheels to aid transportation.

Turbosound B-15 Features:

  • Front loaded subwoofer for portable PA applications
  • 400 Watts continuous, 1,600 Watts peak power
  • 15” neodymium low frequency driver
  • Low distortion bass reflex port design
  • 18 mm (3/4”) birch plywood enclosure with hardwearing semi matte black paint finish
  • Integral M10 rigging points for ease of installation
  • 35 mm pole mount to support satellite speaker
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound B-15 Specifications:

  • Components:  1 x 15" (381 mm) LF Driver
  • Frequency Response:  45 Hz - 150 Hz ± 3dB, 38 Hz – 150 Hz ± 10dB
  • Sensitivity (1 W @ 1 M):  100dB (1 Watt @ 1 Meter)
  • Power Handling:  400 Watts Continuous, 1,600 Watts Peak
  • Calculated Max SPL:  126 dB Continuous, 132 dB Peak
  • Nominal Impedance:  8 Ohms
  • Construction:  18 mm (3/4") Birch Plywood, Finished in Semi Matte Black Paint. Eight Recessed Carrying Handles. Integral Pole Mount Socket
  • Grille:  Powder Coated Perforated Steel Backed with Reticulated Foam
  • Connectors:  2x Neutrik speakON NL4, wired Pin1+: Positive, Pin1-: Negative; Pin 2+ and Pin 2-: N/C
  • Rigging:  M10 Rigging Points for use with M10 Eyebolts
  • Dimensions (HxWxD):  18.3" x 22.6" x 24.4" (464mm x 574mm x 620mm)
  • Net Weight:  77 lbs (35 kg)

Click to download
