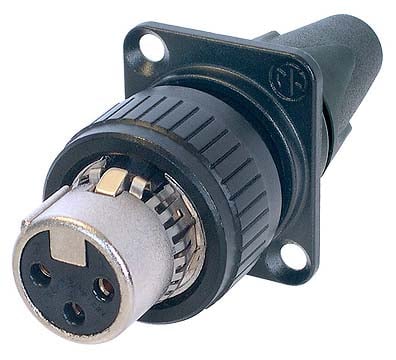

Panel Mount Female Locking/N/G


3 pole female EMC-XLR cable connector for panel mount.
Learn More
Sale Price: $15.99
List Price: $26.10
You save 39%!
Write the first review.

Related Products

3 pole female EMC-XLR cable connector for panel mount. The EMC-XLR Series is a specifically designed version of the XX Series to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. For panel mount application of the EMC XLR Neutrik is offering a special cable version with D flange to mount it into a panel. This panel mountable connector is available as a female cable connector only and features the same specifications as the NC3FXX-EMC. It includes the locking nut of the NC3FX-Spec for secure fastening.


  • 3 pole female XLR panel mount connector with integrated capacitive shield to shell connection
  • Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
  • Circumferential ground spring providing an accurate connection to the mating shell
  • Cable shield - Pin 1 connection includes EMI suppression bead to block high frequencies
  • Avoid ground loops as there is no LF-shield connection to ground
  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
