Kramer BC-2T (300 Meters)
Balanced Stereo Audio / Control Cable, 20 AWG (300 Meters)

OUR PART #:  BC-2T-300M

Balanced Stereo Audio or Control Cable, 20 AWG. 300 Meters. Construction Specifications: Conductors: 20 AWG, (10/30) tinned copper conductors.
Learn More
Our Price: $343.20
List Price: $429.00
You save 20%!
Write the first review.
Kramer BC-2T (300 Meters)
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Balanced Stereo Audio or Control Cable, 20 AWG. 300 Meters.

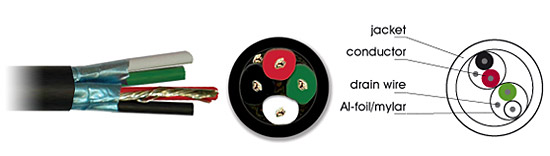

Construction Specifications:

  • Conductors: 20 AWG, (10/30) tinned copper conductors.
  • Drain Wire: 20 AWG (10/30) tinned copper (in contact with shield)
  • Insulation: PVC color coded: Red/ Black & Green/ White.
  • Outer jacket color: Dark Gray w/blue lettering.
  • Shield: Aluminum/Mylar foil with 25% overlapping.
  • Temperature: 32° to 167° Fahrenheit , 0° to 75° Celsius.

Diameter:

  • Conductor: 0.036 inch, 0.916mm.
  • Outer jacket: 0.221 inch, 5.6mm.
  • PVC insulation: 0.44mm nominal thickness. 0.071 inch, 1.8 mm. diameter.

Electrical Specifications:

  • DC resistance: 10.5 ohms per 1000 ft, 34.6 ohms per km.
  • Impedance: 40-100 ohms.
  • Mutual capacitance conductor-conductor: 27 pF per foot, 89 pF per meter.
  • Mutual capacitance connected to shield: 49 pF per foot, 161 pF per meter.

Regulatory Specifications:

  • CSA: CM, FT4.
  • RoHS: Compliant in accordance with European directive 2002/95/IEC.
  • UL: CM.
