Kramer BC-1T (300 Meters)
Balanced Mono Audio / Control Cable, 20 AWG, 300 Meters

OUR PART #:  BC-1T-300M

Balanced Mono Audio or Control Cable. 300 Meters.
Learn More
Our Price: $196.00
List Price: $245.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer BC-1T (300 Meters)
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Balanced Mono Audio or Control Cable. 300 Meters.

Features:

  • Quality Construction - 18 gauge solid center conductor and dual shield design consisting of aluminum braid and foil. Rugged and flexible with low attenuation.
  • Universal Compatibility - Compatible with Kramer’s compression connectors as well as typical crimp systems.
  • 985 foot (300 meter) roll.

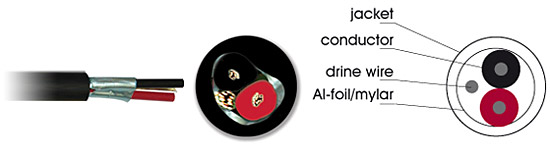

Construction Specifications:

  • Conductors: 20 AWG, (10/30) tinned copper conductors.
  • Drain Wire: 20 AWG (10/30) tinned copper (in contact with shield)
  • Insulation: PVC color coded: Red, Black.
  • Outer jacket color: Dark Gray w/blue lettering.
  • Shield: Aluminum/Mylar foil with 25% overlapping.
  • Temperature: 32° - 167° F , 0° - 75° C.

Diameter:

  • Conductor: 0.036 inch, 0.916mm
  • Outer jacket: 0.213 inch, 5.4mm.
  • PVC insulation: 0.44mm nominal thickness. 0.071 inch, 1.8 mm diameter.

Electrical Specifications:

  • DC resistance: 10.5 ohms per 1000 ft, 34.6 ohms per km.
  • Impedance: 40-100 ohms.
  • Mutual capacitance conductor-conductor: 27pF per foot, 89 pF per meter.
  • Mutual capacitance connected to shield: 49 pF per foot, 161 pF per meter.

Regulatory Specifications:

  • CSA: CM, FT4.
  • RoHS: Compliant in accordance with European directive 2002/95/IEC.
  • UL: CM.
