Elation UNI BAR 1-Channel Dimmer or Relay Pack

OUR PART #: UNI-BAR MFR #: UNI BAR

Copied to clipboard

Elation Pro Lighting's UNI BAR is a lightweight and compact, single-channel, truss- or stand-mountable DMX dimmer that features a powerful maximum channel output of 10 amps. ...Read more

Elation UNI BAR 1-Channel Dimmer Or Relay Pack Image 1
Elation UNI BAR 1-Channel Dimmer Or Relay Pack Image 2
Elation UNI BAR 1-Channel Dimmer Or Relay Pack Image 3
Elation UNI BAR 1-Channel Dimmer Or Relay Pack Image 4
Elation UNI BAR 1-Channel Dimmer Or Relay Pack
Our Price: $112.00
List Price: $140.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

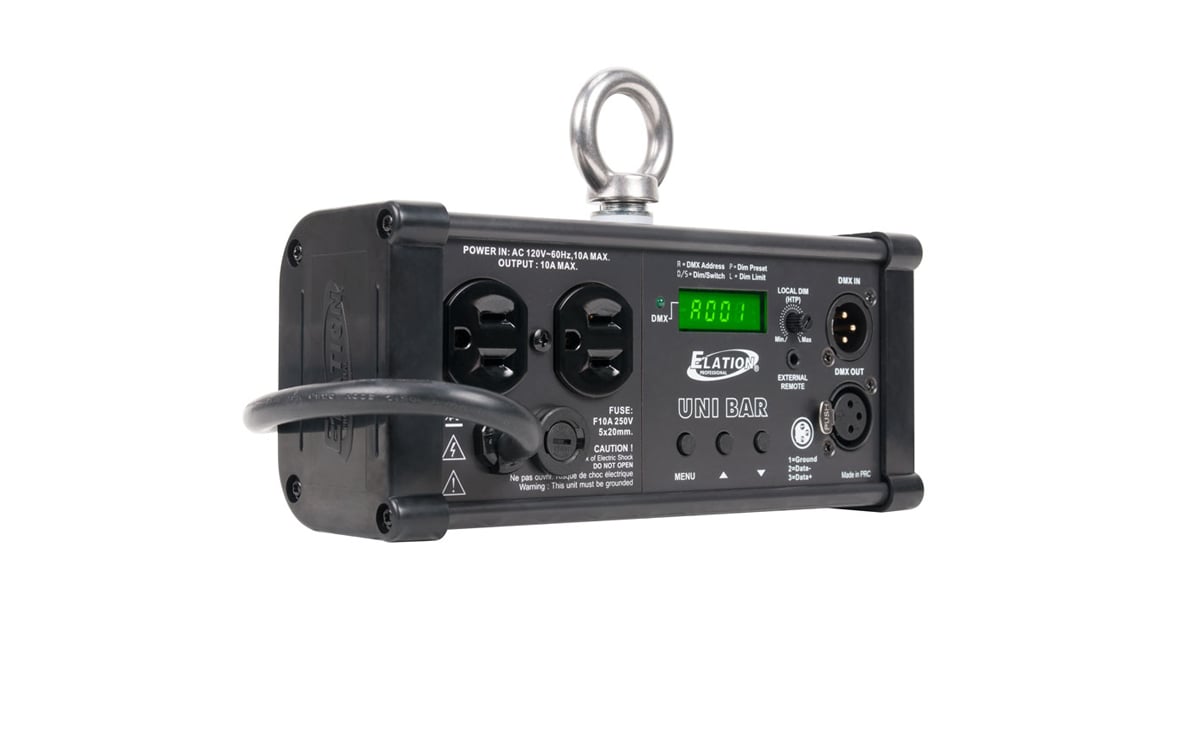

Elation Pro Lighting's UNI BAR is a lightweight and compact, single-channel, truss- or stand-mountable DMX dimmer that features a powerful maximum channel output of 10 amps. Additional features include: dimmer or switch-pack modes, local HTP dimmer control, power failure memory, 5-pin DMX in/out (2) Edison 5-prong outputs, 3-button control panel and LCD display, easy mounting using standard truss clamps or couplers (sold separately), plus an input for an optional analog HTP dimmer controller (sold separately). Plus it features dimmer preset and limit functions that are great for ensuring a long lifetime for your lamps.

Elation UNI BAR Features:

  • Single DMX Channel Switch or Dimmer Pack Mode
  • 10 Amp Maximum Channel Output
  • Dimmer Preset and Dimmer Limit Settings
  • Local HTP Dimmer Control Dial
  • Input for Optional Analog HTP Dimmer Controller (sold separately)
  • Power Failure Memory
  • Truss-mountable

Elation UNI BAR Specifications:

  • Control / Connections:
    • (1) DMX Channel
    • 3-Button Control Panel
    • LCD Menu Display
    • On-board HTP Dimming Control Dial
    • Input for Optional Analog HTP Dimmer
    • (2) Edison 3-prong Outputs (10 A Max Total Output)
    • 5-pin DMX In/Out (I/O)
  • Physical:
    • Dimensions (L x W x Vertical Height): 7.83" x 3.23" x 2.63 (200 x 82 x 66.8mm)
    • Weight: 2.4 lbs. (1.1 kg)
  • Electrical: AC 120V - 60Hz / 10A Max Total Output

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download

Product Reviews

Reviewed by 1 customer
(0 are Verified Buyers.)

Write a Review

There are no reviews to display with the selected filters.

Brandon H on 02/19/2021

Hooked up 12 in series for dimming lights in a matter of two weeks more than half stop communicating typically between 1 and 24 hours of staying on and connected. They will start working again if powered off and back on. They fail in random patterns it was never the same two or three that stopped talking DMX. Everything else works as should with no issues.
