West Penn AQ227-BY-FOOT
12 gauge Aquaseal Wire, By the Ft

OUR PART #  AQ227-BY-FOOT

Our Price: $1.37
List Price: $1.67
Save up to 47% when you order by quantity!
Buy 50 @ $1.09 ea.
Buy 200 @ $1.00 ea.
Buy 400 @ $0.89 ea.
(Low Price Guarantee)

This product must be purchased in multiples of 10

Qty: Special Order Item

Usually ships in 7-14 business days.
Need it sooner? Call us!

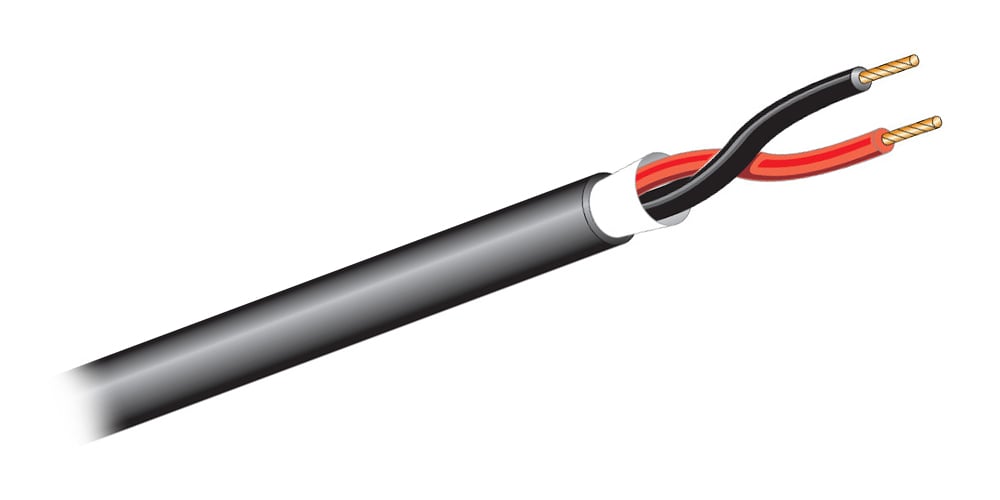

12/2 stranded bare copper conductors, overall unshielded with Aquaseal tape and overall jacket. Materials suitable for outdoor use (direct burial), and indoor trays, allows a variety of uses for low-voltage industrial process control circuits, power-limited circuits, power-limited fire alarm circuits, power-limited tray cable (PLTC).

Construction Parameters

  • Conductor: 12 AWG Bare Copper
  • Stranding: 19x25
  • Insulation Material: PVC with Nylon
  • Insulation Thickness: PVC: 0.015"; Nylon: 0.005"
  • Number of Conductors: 2 (1 pair)
  • Shield: None
  • Drain: None
  • Water-Blocking Tape: 2 Ply water swellable tape
  • Jacket Material: Sunlight/Moisture Resistant PVC
  • Jacket Thickness: 0.040"
  • Overall Cable Diameter: .340"
  • Approximate Cable Weight: 78 lbs/1m
  • Flame Rating: UL 1685 Vertical Tray

Electrical & Environmental Properties

  • Temperature Rating: -20 to 60 deg C
  • Operating Voltage: 300 V RMS
  • Max. Capacitance Between Conductors @ 1 kHz: 36 pf/ft
  • DC Resistance per Conductor @ 20 deg C: 1.7 ohms/1m
  • Insulation Colors: Black, Red
  • Jacket Color: Black

Mechanical Properties

  • Max. Recommended Pull Tension: 146 lbs.
  • Min. Bend Radius (install): 3.4"
