Community R2-52Z

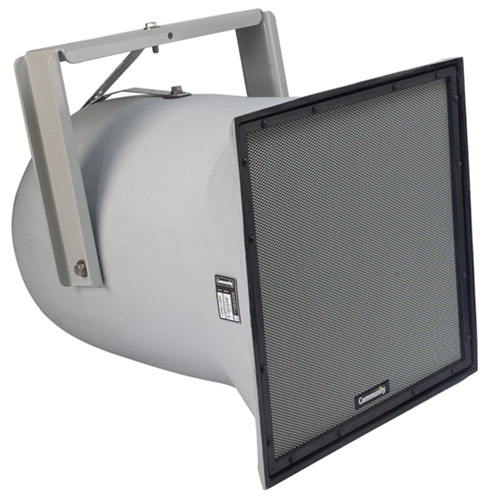

R Series Dual 12" 3-Way Weather-Resistant Loudspeaker with 50°x20° Dispersion in Light Grey

OUR PART #:  R2-52Z

The Community R2-52Z full-range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications.
Learn More

Call for info!

Similar Products

The Community R2-52Z full-range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion.

The R2-52Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass. The outer enclosure forms a double wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The mid/high frequency horn assembly is mounted in the mouth of the bass horn. A high quality passive crossover with dynamic driver protection is included. A stainless steel mounting yoke is included. The result is a loudspeaker system that is extremely strong, non-resonant, weather-resistant, and easy to install.

Community R2-52Z Features:

  • Weather-resistant construction
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • 3-layer Weather-Stop™ grille
  • Application-specific coverage pattern
  • High-efficiency horn loading
  • High-fidelity, full-range reproduction of music and speech
  • Included weather-resistant mounting yoke for easy mounting and aiming
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R2-52Z Specifications:

  • Loudspeaker Type:  3-way horn loaded triaxial, weather-resistant
  • Operating Range:
    • 70 Hz to 16 kHz
    • 70 Hz to 10 kHz (+/- 5 dB)
  • Max Input Ratings:
    • 400W continuous, 1000W program
    • 40 volts RMS, 89 volts momentary peak
  • Recommended Power Amplifier:  830W to 1200W @ 4 Ohms
  • Sensitivity (1W/1m):
    • 107 dB SPL (80 Hz to 16 kHz 1/3 octave bands)
    • 109 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output:  133 dB SPL / 139 dB SPL (peak)
  • Nominal Impedance:  4 Ohms
  • Minimum Impedance:  2.9 Ohms @ 260 Hz
  • Nominal –6dB Beamwidth:
    • 50° H (+36° / -15°, 1.25 kHz to 10 kHz)
    • 20° V (+13° / -5°, 1.25 kHz to 10 kHz)
    • 100° H x 100° V (400 Hz)
  • Axial Q / DI:  37.9 / 15.8, 1.25 kHz to 10 kHz
  • Crossover Frequency:  600 Hz / 3.5 kHz
  • Recommended Signal Processing:  70 Hz high pass filter
  • Drivers:
    • LF:  2x 12" weather-treated, Ferrofluid-cooled
    • MF:  1x M200 2" exit, non-metallic diaphragm, Ferrofluid-cooled
    • HF:  1x 1" exit, titanium diaphragm
  • Driver Protection:  DYNA-TECH protection circuitry
  • Input Connection:  12 ft (4 m) SJOW #16 gauge
  • Controls:  None
  • Enclosure:  Hand-laminated fiberglass, light greygelcoat
  • Mounting/Rigging Provisions:  (5) 1/2-13 riggingpoints
  • Grille:  3-layer WeatherStop™, light grey (Zinc-richepoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
  • Environmental Performance:  IEC529 IP55W rating with aminimum 5-degree downward aiming angle
  • Required Accessories (not included):  70 Hz high pass filter
  • Supplied Accessories:  Weather-resistant mountingyoke, light grey
  • Optional Accessories (not included):  TRC400 400-watt 70/100/140-volt transformer
  • Dimensions:  24.75" H x 24.75" W x 30.75" D (629 x 629x 781 mm)
  • Weight:  102.5 lbs (46.5 kg)
