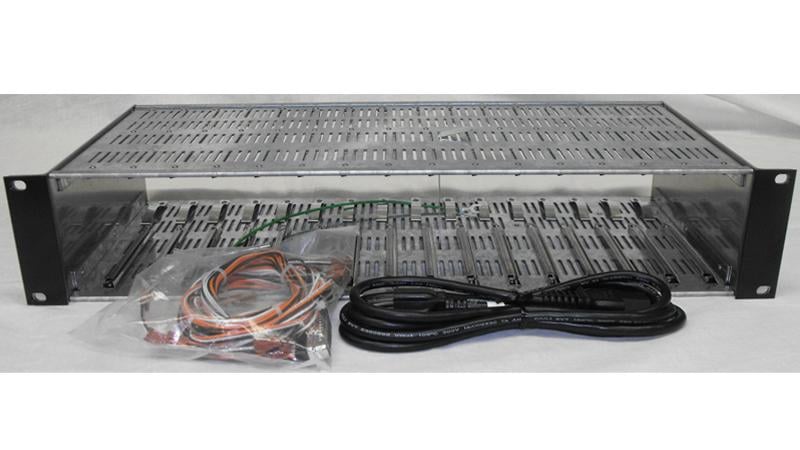

Blonder-Tongue MIRC-12V
12-Slot Vertical Chassis, 2RU

OUR PART #:  MIRC-12V

The MIRC-12V is extremely well-suited for use in surveillance or security type applications.
Learn More
Our Price: $131.45
List Price: $133.00
Write the first review.
Blonder-Tongue MIRC-12V
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MIRC-12V is extremely well-suited for use in surveillance or security type applications. A video camera's baseband video output can be modulated to any cable television channel and combined with existing TV signals to permit any outlet to monitor the camera feeds. TYhis compact chassis can support up to 12 fixed-channel or agile modulators and can be mounted in practically any location. The use of Blonder Tongue high-performance modulators easily permits placing camera signals on adjacent channels.

Specifications:

  • Connectors:

    o   AC Input: IEC

    o   DC Output: 37-pin D

  • Power Requirements: 100 VAC to 240 VAC, +/- 10%
  • Frequency: 50-60 Hz
  • Temperature Range: 0 degrees to 50 degrees Celsius
  • Output: +5 VDC @ 5.5 A, +12 VDC @ 4 A, 75 W
  • Dimensions (W x H X D): 4.16" x 3.5" x 7.5"
  • Weight: 1.10 lbs. (0.50 kg)
