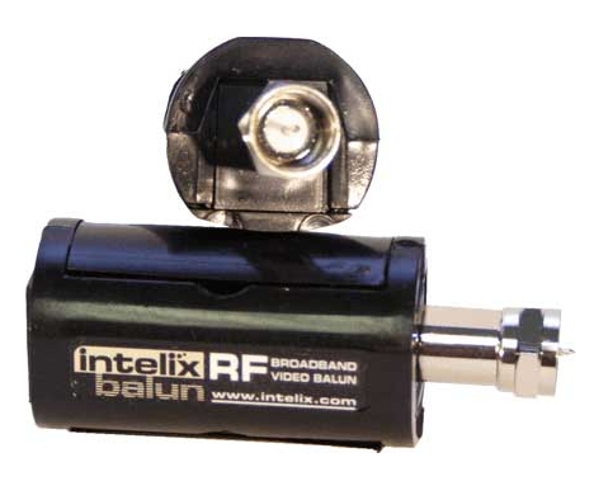

Intelix RF-F
Broadband (RF) Video Over Cat 5 Cable Balun

OUR PART #:  RF-F

The Intelix RF-F balun is ideal for transmitting cable TV channels 2 to 150 up to 330 feet over structured cabling, such as Cat 5.
Learn More
Our Price: $98.06
List Price: $108.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix RF-F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix RF-F balun is ideal for transmitting cable TV channels 2 to 150 up to 330 feet over structured cabling, such as Cat 5.

Intelix RF-F Specifications:

  • Max Distance: 330 feet
  • Bandwidth (3 dB): 5 MHz to 900 MHz
  • Supported Channels:
    • CATV channels 2-150
    • VHF channels 2-13
    • FM broadcast band
  • Power: No power required
  • Insertion Loss:
    • <9dB: 5-10 MHz
    • <3 dB: 10-900MHz
  • Return Loss:
    • <10dB: 15-370 MHz
    • <7 dB: 370-770MHz
    • <10 dB: 770-900 MHz
  • Common Mode Rejection:-20 dB or higher at 5-900MHz
  • Cable: Cat 3, Cat 5, Cat5e, Cat 6, and Cat 7 compatible
  • Connectors: One (1) male F to one (1) RJ45
  • Enclosure: Black plastic
  • Dimensions: 2.5" x 1.0" diameter
  • Shipping Weight: 0.5 lbs.
  • PinOut: 7 & 8, pair 4
  • Temperature:
    • Operating: 32° to 131°F
    • Storage: -4° to 185°F
    • Humidity: up to 95%
  • Warranty: 2 years
