DPA 4091 Low-Sensitivity Omni Condenser Mic

OUR PART #: 4091

Copied to clipboard

The DPA Microphones 4091 is a high-quality omnidirectional condenser microphone. ...Read more

DPA 4091 Low-Sensitivity Omni Condenser Mic Image 1
yLtpnBhm3ZU
1 Video
DPA 4091 Low-Sensitivity Omni Condenser Mic
Our Price: $700.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$20/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

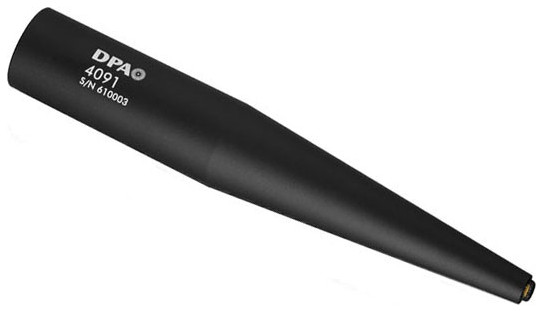

The DPA Microphones 4091 is a high-quality omnidirectional condenser microphone. Due to its uniquely natural and open sound, the 4091 is suitable for instrument miking applications in the studio or on the stage.

The 144 dB SPL handling means it can meet just about any challenge including miking an electric guitar amp. An excellent microphone for percussion instruments, the 4091 is also an ideal choice for wind and string instruments. Due to their remarkably linear frequency response in the 20 Hz to 20 kHz range, sound system engineers can also use these mics for sound system alignment, testing and tuning.

The rugged and compact design features a 5.4 mm diameter pre-polarized condenser capsule in a tapered body measuring just 12 cm (4.76").

DPA 4091 Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range, ± 2 dB: 20 Hz – 20 kHz
  • Sensitivity, nominal, ± 3 dB at 1 kHz: 6 mV/Pa; -44.5 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): 68 dB(A)
  • Total harmonic distortion (THD): < 1 % up to 123 dB SPL peak
  • Dynamic range: Typ. 97 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: < 40 ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Output balance principle: Impedance balanced
  • Common Mode Rejection Ratio (CMRR): > 40 dB
  • Power supply: 48 V Phantom power ± 4 V
  • Current consumption: 2 mA
  • Connector: 3-pin XLR-M
  • Color: Black
  • Microphone weight: 38 g (1.34 oz)
  • Microphone diameter: 19 mm; at tip 6.7 mm (0.75"; at tip: 0.26")
  • Capsule diameter: 5.4 mm (0.21"
  • Microphone length: 122 mm (4.8"
  • Polarity: Positively increasing sound pressure produces positive going voltage at pin 2
  • Temperature range: -40 °C to 45 °C (14 °F to 113 °F)
  • Relative humidity (RH): 90 %
