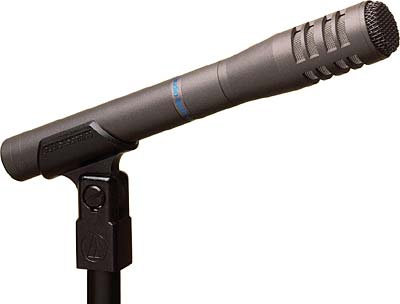

Audio-Technica AT8033 Cardioid Condenser Microphone, Battery or Phantom Powered

Featuring high-SPL (sound pressure level) capability and wide frequency response, Audio-Technica's AT8033 works great for general audio acquisition such as interviews, acoustic guitar, percussion, overheads, vocals and more. Its cardioid polar pattern offers reduced pickup of sounds from the rear and sides of the mic, thus enhancing isolation of targeted sound source. It excels in both studio and stage applications, and conveniently operates on either battery or phantom power.

Applications

Interviews • Acoustic guitar • percussion • Overheads • Vocals • Other general audio acquisition use

Includes

• AT8033 microphone
• AT8405a stand clamp for ⅝"-27 threaded stands
• ⅝"-27 to ⅜"-16 threaded adapter
• Windscreen
• Battery
• Soft protective pouch

Features

• All-purpose condenser microphone ideal for handheld interviews and general audio acquisition
• Excels in both studio and stage applications
• Outstanding linearity both on- and off-axis
• Features high SPL capability and wide frequency response
• Operates on battery or phantom power
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Specifications

• Element: Fixed-charge back plate, permanently-polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 30 - 20,000Hz
• Low Frequency Roll-Off: 80Hz, 12dB/octave
• Open Circuit Sensitivity:
  • Phantom: -44dB (6.3mV) re 1V @ 1Pa
  • Battery: -45dB (5.6mV) re 1V @ 1Pa
• Impedance:
  • Phantom: 250Ω
  • Battery: 300Ω
• Maximum Input Sound Level:
  • Phantom: 137dB SPL, 1kHz @ 1% T.H.D.
  • Battery: 123dB SPL, 1kHz @ 1% T.H.D.
• Dynamic Range (typical): 113dB, 1kHz @ Max SPL; Battery: 99dB, 1kHz @ Max SPL
• Signal-to-Noise Ratio: 70dB, 1kHz @ 1Pa
• Phantom Power Requirements: 11-52VDC, 2mA typical
• Battery Type: 1.5V AA / UM3
• Battery Current/Life: 0.4mA / 1200 hours typical (alkaline)
• Switch: Flat, roll-off
• Weight: 5.6oz. (159g)
• Dimensions (L x head Dia): 7.65" x 1.02" (194.2 x 26mm)
• Output Connector: Integral 3-pin XLRM-type
• Note: further information can be found within the items located under the "Documentation" tab above.
