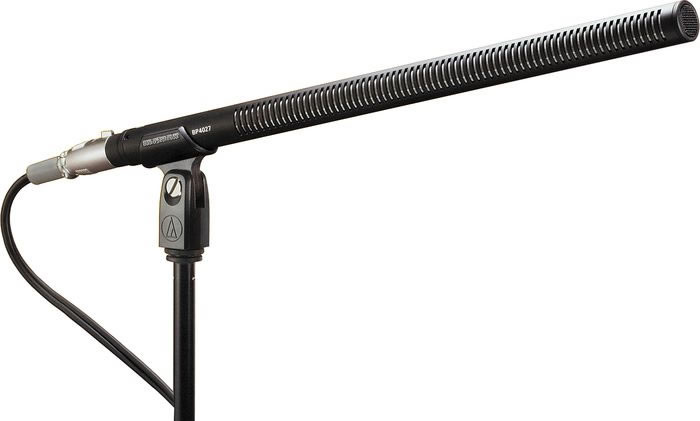

Audio-Technica BP4027 Stereo Shotgun Microphone

The BP4027 from Audio-Technica is a 14.96" long Stereo Shotgun mic whose design is based on models originally developed for use in the Sydney Olympics Broadcast in 2000. Engineered for high-end broadcast and production use, it features independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. This matrixing allows sound recordists the choice of selecting a left-right stereo output (wide or narrow), or choosing discreet Mid-Side signals for later manipulation, a versatile feature not found from any other manufacturer. In addition, a switchable low-frequency (LF) roll-off filter helps to minimize the pickup of unwanted low-frequency noise. This phantom-powered model features a rugged, lightweight design and sleek black color scheme — great for on-camera use.

Applications

High-end Broadcast audio capture • High-end professional audio production capture • Other high-end professional audio capture applications

Includes

• BP4027 microphone
• AT8405a stand clamp for ⅝"-27 threaded stands
• AT8135 foam windscreen
• ⅝"-27 to ⅜"-16 threaded adapter
• Protective carrying case

Features

• Designed for broadcasters, videographers and sound recordists
• Compact, lightweight design is perfect for camera-mount use
• Independent Line-cardioid and Figure-of-eight condenser elements
• Switchable LF roll-off
• Switch selection of non-matrixed M-S mode and 2 internally-matrixed left/right stereo modes
• Includes a 24" (0.61m) cable (5-pin XLRF to two standard 3-pin XLRM connectors)
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Specifications

• Elements: Fixed-charge back plate, permanently-polarized condenser
• Polar Patterns: Line-cardioid, Figure-of-eight
• Frequency Response: 30 - 20,000Hz
• Low Frequency Roll-Off: 80Hz, 12dB/octave
• Open Circuit Sensitivity: Mid: -30dB (31.6mV) re 1V @ 1Pa; Side: -34dB (19.9mV) re 1V @ 1Pa; LR Stereo: -36dB (15.8mV) re 1V @ 1Pa
• Impedance: 200Ω
• Maximum Input Sound Level: Mid: 123dB SPL, 1kHz @ 1% T.H.D.; Side: 127dB SPL, 1kHz @ 1% T.H.D.; LR Stereo: 126dB SPL, 1kHz @ 1% T.H.D.
• Dynamic Range (typical): Mid: 101dB, 1kHz @ Max SPL; Side: 101dB, 1kHz @ Max SPL; LR Stereo: 102dB, 1kHz @ Max SPL
• Signal-to-Noise Ratio: Mid: 72dB SPL, 1kHz @ 1Pa; Side: 68dB SPL, 1kHz @ 1Pa; LR Stereo: 70dB SPL, 1kHz @ 1Pa
• Phantom Power Requirements: 11 - 52VDC, 4mA typical at 48V, each channel
• Switches: M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off
• Weight: 5.0oz.
• Dimensions (L x Dia): 14.96" x 0.83"
• Output Connector: Integral XLR5M-type
• Cable: Dual 24" shielded 2-conductor, terminated in (2) XLR3M-type connectors
• Note: further information can be found within the items located under the "Documentation" tab above.
