Product Overview

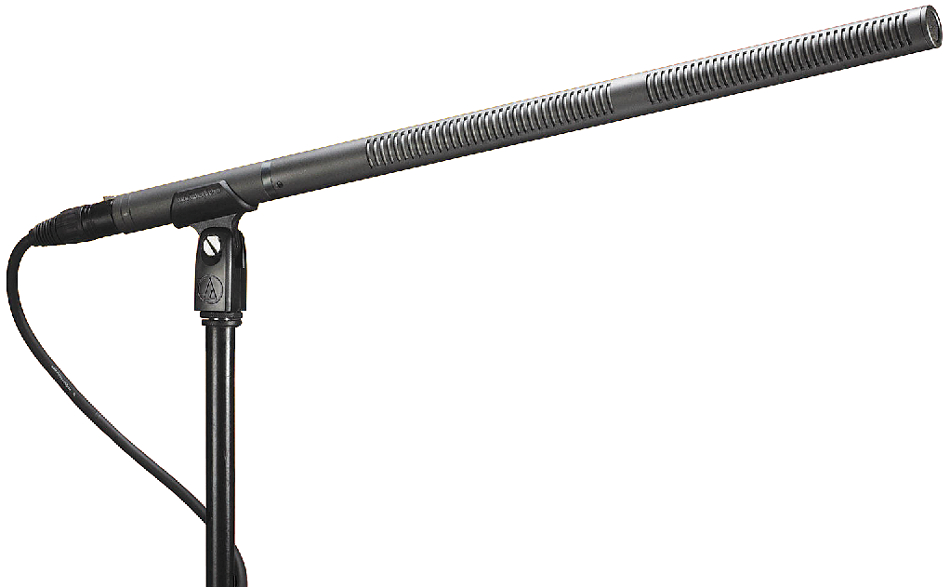

The Audio-Technica AT8015 is designed especially for video production and Broadcast (ENG - electronic news gathering/EFP - electronic field production) audio acquisition. It features the narrow acceptance angle that's desirable for long-distance sound pickup, plus excellent sound rejection from the rear and sides of the mic. Engaging the mic's roll-off circuitry reduces the pickup of low-frequency ambient noise (like traffic, air-handling systems, etc.), room reverberation and mechanically-coupled vibrations. Additionally, it can be either battery- or phantom-powered.
Applications
Long-distance sound pickup for video production and Broadcast (ENG/EFP)
Includes
- AT8015 shotgun mic
- AT8405a stand clamp for ⅝"-27 threaded stands
- ⅝"-27 to ⅜"-16 threaded adapter
- AT8135 windscreen
- Battery
- Protective carrying case
Features
- Long 460mm shotgun microphone, designed for video production and broadcast (ENG/EFP) audio acquisition
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Captures sound with high intelligibility in noisy environments due to excellent sound rejection from the sides and rear of mic
- Operates on battery or phantom power for increased versatility
- Switchable 80Hz low frequency rolloff, with a slope of 18dB / octave to reduce pickup of low-frequency ambient noise
- Effective protection against interference related to nearby mobile phones and other unwanted radio frequency
Specifications
- Element: Fixed-charge back plate, permanently-polarized condenser
- Polar Pattern: Line + Gradient
- Frequency Response: 40Hz - 20kHz
- Low Frequency Roll-off: 80Hz, 12dB/octave
- Open Circuit Sensitivity: Phantom: -38dB (12.5mV) re 1V @ 1Pa; Battery: -39dB (11.2mV) re 1V @ 1Pa
- Impedance: Phantom: 250Ω; Battery: 300Ω
- Maximum Input Sound Level: Phantom: 132dB SPL, 1kHz @ 1% THD; Battery: 120dB SPL, 1kHz @ 1% THD
- Dynamic Range (Typical): Phantom: 110dB, 1kHz @ Max SPL; Battery: 98dB, 1kHz @ Max SPL
- Signal-to-Noise Ratio: 72dB, 1kHz @ 1Pa
- Phantom Power Requirements: 11 - 52VDC, 2mA typical
- Battery Type: 1.5V AA / UM3
- Battery Current/Life: 0.4mA / 1200 hours typical (alkaline)
- Switch: Flat, roll-off
- Weight: 6.9oz. (195g)
- Dimensions (L x Dia): 18.11" x 0.83" (460 x 21mm)
- Output Connector: Integral 3-pin XLRM-type
- Approvals: RoHS compliant—free from all substances specified in the EU directive on hazardous substances
- Note: further information can be found within the items located under the "Documentation" tab above.
