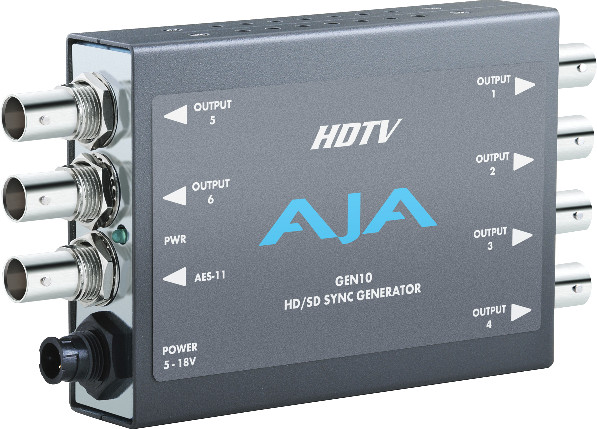

AJA Video Systems Inc GEN10
SD/HD/AES Sync Generator, Blackburst, Tri-Level Sync Generator with Power Supply

OUR PART #:  GEN10

The AJA GEN10 is a flexible SD/HD/AES sync generator that features 7 outputs, including 2 groups of independently-controlled SD/HD sync outputs and 1 AES-11 output.
Learn More
Our Price: $345.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc GEN10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA GEN10 is a flexible SD/HD/AES sync generator that features 7 outputs, including 2 groups of independently-controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each other and are sourced from an accurate master time base.

AJA GEN10 SD/HD/AES Sync Generator Features:

  • HD Tri-level sync generation
  • SD Color Black or Color Bars
  • Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
  • AES-11 output switchable between silence and tone
  • Multiple outputs can synchronize entire systems without requiring a Sync DA
  • 5-18VDC Power Supply (included)
  • External Dip Switch Configuration

AJA GEN10 SD/HD/AES Sync Generator Specifications:

  • HD Sync: Trilevel
  • SD Sync: Color Black, 75% Color Bars
  • AES: AES-11, 48KHz, Silent or 1KHz Tone (-20db FSD)
  • Accuracy: 3 ppm
  • Formats
    • 525i, 625i
    • 720p 23.98/24/25/29.97/30/60
    • 1080i 50/59.94/60
    • 1080psf 23.98/24/25/29.97/30
    • 1080p 23.98/24/25/29.97/30
  • User Controls: External Dipswitch
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
  • Power:
    • +5-18VDC, 3 watts
    • Requires Power Supply (Included)

Click to download
