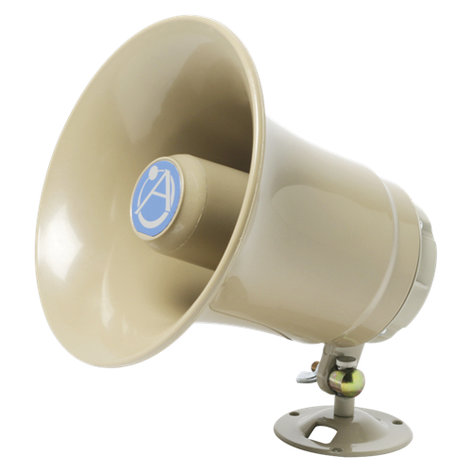

Atlas Sound SC-15-45
15 Watts at 45 Ohms High-Efficiency Paging Horn

OUR PART #:  SC15-45

The Atlas Sound SC Series of double re-entrant acoustic path loudspeakers are low-cost...
Learn More
Our Price: $144.99
List Price: $181.99
You save 20%!
Write the first review.
Atlas Sound SC-15-45
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Atlas Sound SC Series of double re-entrant acoustic path loudspeakers are low-cost, weatherproof units which reproduce voice and signal communication with high intelligibility. Models include a built-in 15-watt compression driver with 8 or 45-ohm impedance. Model SC-15-45 is a 45-ohm unit for intercom uses and Model SC-15 is an 8 ohm version for multi-purpose installations. All SC Series loudspeakers are equipped with a high impact molded plastic bell, metal mounting bracket and will an accommodate optional 70.7/25-volt transformer. They also feature a swivel base with nut assembly for easy-to-adjust horizontal and vertical positioning. Termination is via a 12" connecting cable. Finish is light beige epoxy.

Atlas Sound SC-15-45 Features:

  • Compact Size and Styling Enhance Application Flexibility
  • Environment Resistant Construction for Long Term Indoor/Outdoor Use
  • Precision-Built 15-Watt Compression Driver for Optimum Power and Intelligibility
  • Value-Priced, High Efficiency, Multi-Function Loudspeaker

Atlas Sound SC-15-45 Specifications:

  • Depth: 6 15/16"
  • Diameter: 6 1/4"
  • Shipping Weight: 3 lbs
  • Frequency Response: 600 - 6,000 Hz
  • Impedance: 45 ohms
  • Dispersion: 95 degrees
  • Power Rating: 15 watts
  • Sensitivity: 103 dB
