Ace Backstage 025BR Mini Stage Pocket, Brass Finish

OUR PART #: 025BR

Copied to clipboard

Ace Backstage Co. Inc.'s compact-sized Stage Pocket, the Mini Stage Pocket, is a standard general use vertical slant panel flush stage pocket. ...Read more

Ace Backstage 025BR Mini Stage Pocket, Brass Finish Image 1
OKLwESuZtvA
2 Videos
Ace Backstage 025BR Mini Stage Pocket, Brass Finish
Our Price: $362.48
List Price: $426.74
You save 15%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

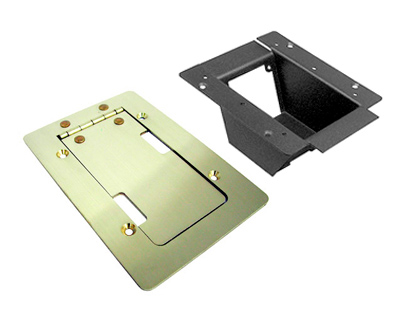

Ace Backstage Co. Inc.'s compact-sized Stage Pocket, the Mini Stage Pocket, is a standard general use vertical slant panel flush stage pocket. The Mini Stage Pocket is a compact rugged, high utility, high density design. The Mini Stage Pocket is made of heavy duty steel and may be used to conceal audio, communications, control, data, electric AC power, switches, video, and voice connections etc. below the floor surface for easy access and to prevent connector damage. The Mini Stage Pocket has a compact capacity inter-changeable panel system which permits easy custom connector/panel configurations. The lid/bezel is 1/8” steel with a footprint of 4-3/4” x 7”. The hinge is brushed brass or stainless steel and will not rust or discolor.

The Lid and Mounting Flange mounts to the Mini Pocket Body which easily installs in raised floors with or without a back box. Two panel positions in the pocket body permit a wide array of connection possibilities. While the space in the pocket is compact, a careful selection of connectors can satisfy requirements for audio, video, computer or 110VAC connectivity.

The small footprint and compact size sets limits for the combination of connectors that may be used in a single pocket. Using the “CONNECTRIX” system in various optional 2-panel combinations for large and small connectors a surprising array of connections can be accomplished. A single Mini Pocket may accommodate only one or two larger connectors (mic, speaker, VGA, A.C. etc.). When using smaller connectors four or more connections are possible. When selected large and small connectors are stategically placed in the opposing panels, 3-4 connectivity terminations can easily be accomplished.
