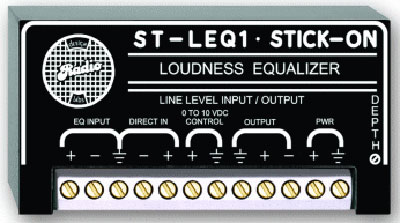

Radio Design Labs ST-LEQ1
Loudness Equalizer

OUR PART #  STLEQ1

Our Price: $82.03
List Price: $109.73
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' ST-LEQ1 has two line-level audio inputs and a single line-level audio output. The audio signal to be equalized connects to the EQ INPUT. If it is desired to mix an unprocessed source with the output signal, this second source is connected to the DIRECT IN input. Loudness equalization is applied to the EQ INPUT signal as the CONTROL voltage is varied.

The ST-LEQ1 may be operated together with any equipment which provides a 0 to 10 Vdc control. It is specifically designed to operate with other RDL equipment using 0 to 10 Vdc for level control. Because the ST-LEQ1 works with any RDL VCA module, all RDL remote level controls are suited for use with ST-LEQ1 Loudness Equalization.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

The line-level audio source is first fed through the RDL VCA product, then through the ST-LEQ1. The audio output from the ST-LEQ1 feeds the system amplifier or other equipment. The CONTROL terminals to the ST-LEQ1 are wired in parallel with the 0 to 10 Vdc terminals on the RDL VCA. The remote volume control associated with the VCA/ST-LEQ1 combination is adjusted to the normal low listening level, then the installer sets the desired loudness equalization on the multi-turn trimming potentiometer on the ST-LEQ1. As the listening level is increased by the remote control, the loudness equalization is progressively decreased until the audio is flat at normal higher levels.

Features:

  • Loudness Contour to Follow Volume
  • Improved Aural Flatness at Low Levels
  • Installer-Defined Loudness Equalization
  • Automatic Loudness Equalization when used with any RDL® VCA Remote

Typical Performance:

  • Inputs (2): Line-level (+4 dBu nominal)
  • Input Impedance: > 30 kO (balanced or unbalanced)
  • Gain: Unity nominal (into 600 O)
  • Output Impedance: 150 O (balanced or unbalanced)
  • Headroom: > 16 dB (above +4 dBu)
  • THD+N: < 0.005% (flat response)
  • CMRR: > 50 dB (Either input, 50 Hz to 120 Hz)
  • Noise: < -90 dB below +4 dBu (flat response)
  • Frequency Response: 10 Hz to 40 kHz (+/-1 dB)
  • Control Input: 0 to 10 Vdc
  • Equalization: Flat to –15 dB max (1 kHz, effective boost of low and high frequencies)
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 35 mA
