Quam SYSTEM 15
24"x24" Lay-In Tile Replacement Loudspeaker Assembly


Our Price: $83.98
List Price: $122.42
You save 31%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

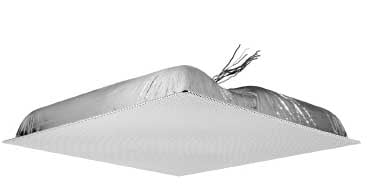

Quam's SYSTEM 15 is a complete loudspeaker assembly with an 8" O.D., wide frequency response coaxial loudspeaker, 10W-70.7V, low loss, extended frequency response pigtail transformer, perforated steel baffle, and integral molded fiber enclosure.


  • Average Sensitivity: 95 dB-SPL, 1W/ 1M
  • Loudspeaker Power: 20W-RMS, EIA 426A Standard Rating
  • Calculated Maximum System Output: 105 dB-SPL, 10W / 1M
  • Magnet Type, Weight: BeFe Ceramic, 10 oz. Nominal
  • Frequency Response: 40 - 20kHz
    EIA 426A Standard
  • Nominal Coverage Angle: 100┬░ Included angle, -6dB
    2 kHz, half space
  • Audio Connection: 7" long labeled, jumper select, tinned wires, pre-cut

Click to download

Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
