Quam SYSTEM-12/70RS 24"x24" Tile Replacement Loudspeaker System, 70V Transformer with Rotary Switch

OUR PART #: SYSTEM-12/70RS

Copied to clipboard

The SYSTEM 12 is a complete, UL Listed, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. ...Read more

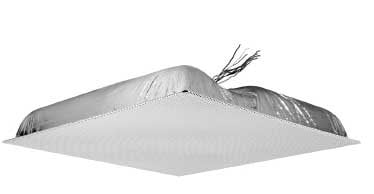

Quam SYSTEM-12/70RS 24"x24" Tile Replacement Loudspeaker System, 70V Transformer With Rotary Switch Image 1
Quam SYSTEM-12/70RS 24"x24" Tile Replacement Loudspeaker System, 70V Transformer With Rotary Switch
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The SYSTEM 12 is a complete, UL Listed, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. dual cone loudspeaker with a 5oz. magnet and a 4W-25 / 70V rotary select transformer. Molded fiber enclosure is 1,412 CID. Steel baffle with standard perforation and four (4) seismic tie-off points. Cable clamp is included. No assembly required.

Applications

  • All variants:
    • Mounted parallel to floor plane in a 24" wide suspended ceiling tile grid
    • Interior environment.
  • Program Material:
    • Signal tones
    • Voice
    • Music

Features

  • Complete loudspeaker assembly with 8" frame loudspeaker and perforated steel baffle
  • 4W 25 / 70V rotary select transformer
  • Mounts parallel to floor plane in a 24" wide suspended ceiling tile grid
  • Great for signal tones, voice, and music applications
  • 12W RMS power rating
