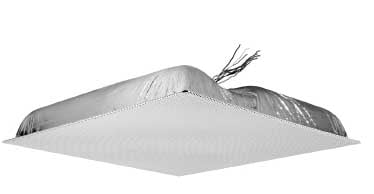

Quam SYSTEM-12/25RS 24"x24" Tile Replacement Loudspeaker System, 25V Transformer with Rotary Switch

The Quam SYSTEM 12/xxxx/x is a complete loudspeaker assembly, with 8" frame loudspeaker and perforated steel baffle.

Transformer options: 25V / 70.7V pig-tail, 25V rotary select or 70.7V rotary select

Finish options: White or black baked epoxy hybrid

INTENDED USE:

• All variants: Mounted parallel to floor plane in a 24" wide suspended ceiling tile grid; interior environment.
• Program Material: Signal tones, voice and music

Quam SYSTEM-12/25RS Specifications:

• Average Sensitivity – 92dB SPL, 1W / 1M
• Loudspeaker Power Rating – 12W RMS EIA 426A Standard
• Maximum Output – 15W @ 8Ω
• Calculated Output – 98dB - SPL 4W / 1M
• Magnet Type & Weight – BeFe Ceramic, 5oz. Nominal
• Frequency Response – 65Hz - 17kHz EIA 426A Standard
• Nominal Coverage Angle – 100° Included Angle -6dB / 2kHz, Half space
• Audio Connection – 7" Leads
• Unit Weight – 6.35lbs
