Ensemble Designs BE-5
Analog Composite TBC & Frame Sync

OUR PART #:  BE-5

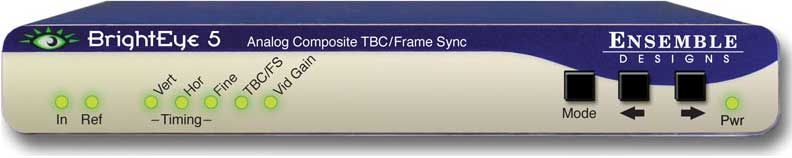

BrightEye 5 is a Time Base Corrector with analog composite inputs and outputs. 12 bit digital signal processing ensures the best signal handling and a solid output.
Learn More
Our Price: $902.50
List Price: $950.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BE-5
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

BrightEye 5 is a Time Base Corrector with analog composite inputs and outputs. 12 bit digital signal processing ensures the best signal handling and a solid output. BrightEye 5 will time base correct signals from analog sources such as consumer VCRs, cameras and noisy microwave receivers.

The analog input is converted at 12 bits of resolution for digital processing. The signal is time base corrected and frame synchronized to the reference input and converted back to analog for output. BrightEye 5 auto detects the video standard of the input (PAL or NTSC).

Basic controls are provided on the front panel. With BrightEye Mac or PC software, you can control video proc functions; Gain, Chroma, Pedestal, and Hue. The vertical can be passed or blanked.

Features

  • Use with VCR's, cameras, satellite receivers
  • Analog Video Inputs and Outputs
  • TBC and Frame Sync
  • 12 bit processing

Analog Video Input

  • Number: One
  • Type: NTSC, PAL Composite
  • Impedance: 75 ohms
  • Return Loss: >40 dB, DC to 5.5Mhz
  • Input DC: +/- 1 volt DC
  • Input Hum: <100 mV

Reverence Input

  • Number: One
  • Type: 1Vp-p composite video, PAL or NTSC
  • Impedance: 75 ohms
  • Return Loss: >40dB

Performance

  • Frequency Response: +/-0.1dB, 0 to 5.5 MHz
  • K Factor: <1%
  • ScH Phase Error: <+/-2°
  • Differential Phase: <1°
  • Differential Gain: <1%
  • Signal to Noise: >65dB
  • Timing Window: Infinite (with respect to reference)
  • Output: ScH: Phase matches reference
  • Timing Resolution: Adjustable to within 1° of subcarrier

Analog Video Output

  • Number: Two
  • Type: Composite PAL or NTSC (follows input)
  • Return Loss: >40dB
  • Output DC: <100mV

General Specifications

  • Size (W x H x D): 5.625" x 0.8" x 5.5" including connectors
  • Power: 12 volts, 4 watts (100-230 VAC modular power supply not included)
Power Supply for BrightEye units
Ensemble Designs BE-PS Power Supply for BrightEye units
Power a single BrightEye unit with this universal (100/240V, 50/60hZ) power supply.
