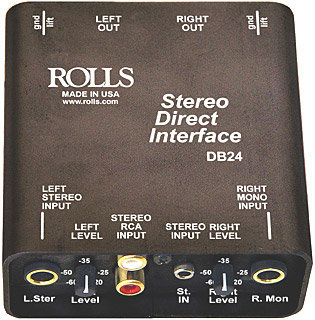

Rolls DB24
2-Channel Stereo Direct Interface

OUR PART #  DB24

Our Price: $69.00
List Price: $90.00
You save 23%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Introducing the new DB24 Stereo Direct Interface. This unit is a two channel isolation device designed to connect high impedance devices to low impedance. The unit is completely passive, and utilizes Rolls proprietary audio transformers for superior sound. A heavy duty steel chassis was chosen to provide maximum reliability when used in demanding live sound reinforcement applications.

A variety of inputs are provided including stereo and mono 1/4", stereo RCA, and stereo 1/8" (3.5mm).

The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system.

Features:

  • Two channel, transformer isolation device
  • Passive - no power required
  • Stereo RCA, 1/8" (3.5mm), and dual 1/4 Inputs
  • Balanced XLR Outputs
  • Ground Lift for each channel
  • Individual variable attenuators

Specifications:

  • Input Impedance : 20k - 600 Ohms
  • Frequency Response: 50 - 15kHz +/- 3 dB
  • Output Impedance: 600 Ohms
  • Max Output Level: +4 dBm
  • Connectors: XLR Male (2), Stereo RCA (1), 1/8" (1) TRS (2)
  • Controls: Variable Attenuators (2), Ground Lift switches (2)
  • Dimensions (W x H x D): 3.42" x 1.45" x 3.325"
  • Weight: 1.5 lbs.

Click to download

Rolls DB24
2-Channel Stereo Direct Interface

OUR PART #  DB24

Product Information:

Introducing the new DB24 Stereo Direct Interface. This unit is a two channel isolation device designed to connect high impedance devices to low impedance. The unit is completely passive, and utilizes Rolls proprietary audio transformers for superior sound. A heavy duty steel chassis was chosen to provide maximum reliability when used in demanding live sound reinforcement applications.

A variety of inputs are provided including stereo and mono 1/4", stereo RCA, and stereo 1/8" (3.5mm).

The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system.

Features:

  • Two channel, transformer isolation device
  • Passive - no power required
  • Stereo RCA, 1/8" (3.5mm), and dual 1/4 Inputs
  • Balanced XLR Outputs
  • Ground Lift for each channel
  • Individual variable attenuators

Specifications:

  • Input Impedance : 20k - 600 Ohms
  • Frequency Response: 50 - 15kHz +/- 3 dB
  • Output Impedance: 600 Ohms
  • Max Output Level: +4 dBm
  • Connectors: XLR Male (2), Stereo RCA (1), 1/8" (1) TRS (2)
  • Controls: Variable Attenuators (2), Ground Lift switches (2)
  • Dimensions (W x H x D): 3.42" x 1.45" x 3.325"
  • Weight: 1.5 lbs.

Click to download
