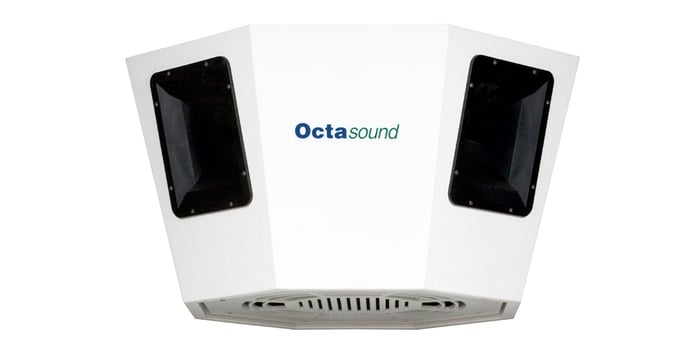

Octasound SP840A
Ceiling Speaker, White 15"


This is the core of the Octasound lineup.
Learn More

This is the core of the Octasound lineup. With 4 horns pointing in 4 directions and a downward facing woofer, these speaker systems are designed to be centrally placed and will deliver clear high fidelity sound over a remarkable amount of area. One eight sided Octasound speaker will replace many ceiling speakers.


  • Frequency Response: 30 Hz to 20 kHz
  • Sensitivity: 104 dB/watt/meter
  • Power handling: 300 Watts RMS / 8 OhmImpedance
  • Coverage: 360° x 180°— 35,000 sq ft (140x 250 ft.) approx.
  • Size and Weight: 16" High, 105 lbs
  • Woofer / Midrange: 15", 120 oz. Magnets,3" Voice Coil
  • Horns (4): 9 x 9 Glass Filled ABS
  • Drivers (4): Exponential Compression, 24Oz Magnets, 3" Voice Coils
  • Enclosure: Tuned Port "Thiele" Aligned
  • Environment: Indoor / HighHumidity
