Aviom AV-P2
2 Channel Line Level Output Module for Pro16 A-Net

OUR PART #:  AV-P2

The AV-P2 Output Module provides up to two channels of analog outputs from a Pro16 A-Net digital audio stream.
Learn More
Our Price: $685.00
List Price: $736.00
You save 7%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Aviom AV-P2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

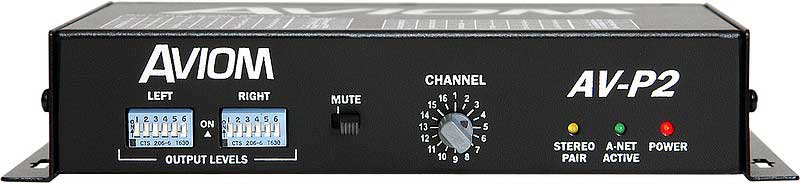

The AV-P2 Output Module provides up to two channels of analog outputs from a Pro16 A-Net digital audio stream. The analog output level for each channel is set with front-panel DIP switches.

AV-P2 modules can be connected in any combination of serial or parallel connections, using Pro16 A-Net Distributors. There is no limit to the number of devices that can be daisy chained, or to the number of parallel splits in a single system.

Each AV-P2 receives a 16-channel A-Net stream originating at a Pro16 input module, console interface card, or Pro64 audio  network (via the ASI A-Net Systems Interface module).

A front-panel rotary switch allows the output to be set to any one of those 16 channels. If the selected channel is part of a stereo pair (set at the input module), the left and right channels are automatically routed to the left and right outputs on the AV-P2. If the selected channel is not part of a stereo pair, the channel's audio is routed to both the left and right outputs.

Audio is distributed to the AV-P2 over standard Cat-5e cables, using Aviom's A-Net digital audio protocol. A-Net supoprts plug-and-play installation, real-time distribution with sub-millisecond latency, and long cable runs up to 500 ft/150 m. Power can be supplied to the AV-P2 with an external DC power supply or over the Cat-5e cable (with an A-Net Distributor). Additionally, Pro16 A-Net audio streams can be transmitted over single- or multi-mode fiber optics using certain standard third-party media converters.

The AV-P2 has reversible mounting flanges. Two AV-P2 modules can be mounted side by side on a standard 1U rack tray. The AV-P2 is compatible with all Pro16 Series products.

Features

  • Provides 1- or 2-channel analog output from a Pro16 A-Net stream
  • Independently selectable output levels for left and right channels
  • 48kHz, 24-bit D/A converters
  • Optional power over Cat-5e using a Pro16 A-Net Distributor
  • Simple plug-and-play installation
  • Secure set-and-forget channel configuration
  • Reversible mounting flanges

Specifications

  • Audio Outputs
    2, impedance balanced line-level
    5.0 mm Euroblockconnectors, female, panel-mount
    2 male Euroblock connectors supplied inbox
    Screw terminals: Audio+; Audio-; Ground
  • Channel Selection: 16-position rotary switch
  • D/A Conversion: 48kHz, 24-bit
  • Output Levels
    Variable: +4dBu to -31dBu in 1.5dBincrements
    6-position DIP switch, per channel
  • Indicators: LEDs; red: Power, green: A-Net Active, yellow: Stereo Pair
  • Output Impedance: 100 ohms
  • Signal to Noise (unweighted): 93dB typical, A/D to D/A
    Measured from AN-16/i Input Module to AV-P2
  • Freq. Response: 4Hz-22kHz +0.2dB/-3dB
  • THD+N: -93dB at -10dBFS
  • Crosstalk: -85dB at 1kHz
  • Bit Error Rate (BER): 10-12
  • Digital Connections: A-Net In: 1; A-Net Out: 1; RJ45 connectors
  • Pro16 A-Net: Uses unshielded Cat-5e UTP (or better) cable
  • Latency: <0.880 msec (measured from analog input to analog output)
  • Power Supply: External, DC, universal switching type
    Input Voltage:100-240 volts, 50/60Hz, 30VA
    Output Voltage: 18-24 VDC, 0.5 amp
    Plug Size: 2mm, locking, center pin hot
  • Dimensions: 7.45" wide x 7" deep; 1U high
  • Weight: 3.4 lbs
