Quam 8C5Z45
PA Loudspeaker, 8", 45 Ohm

OUR PART #  8C5Z45

Our Price: $23.77
Buy 12 @ $19.01 ea.
Buy 24 @ $17.11 ea.
Buy 48 @ $14.26 ea.
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

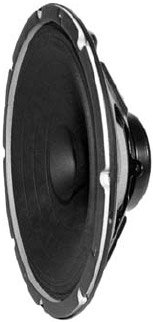

The Quam 8C5Z45 is an 8” frame, 45 Ohm loudspeaker with concentric mount hard fiber HF cone. Finish: Black baked epoxy hybrid.

Intended Use
Wide frequency response replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker system; indoor environment.

Program Material
Signal tones, voice and music


  • Speaker Size: 8” frame
  • Average Sensitivity: 94dB SPL, 1W/ 1M
  • Power Rating: 12W RMS, EIA 426A Standard
  • Calculated Output: 105dB SPL, 10W/ 1M
  • Magnet Type, Weight: BeFe Ceramic, 4.8oz. Nominal
  • Frequency Response: 70Hz - 15 kHz EIA 462A Standard
  • Nominal Coverage Angle: 100° Included Angle, -6 dB / 2 kHz, Half space
  • Mounting: 8x 1/4” Holes spaced 45° apart on 7-5/8” circle
  • Audio Connection: 0.205” Spade lug

Click to download
