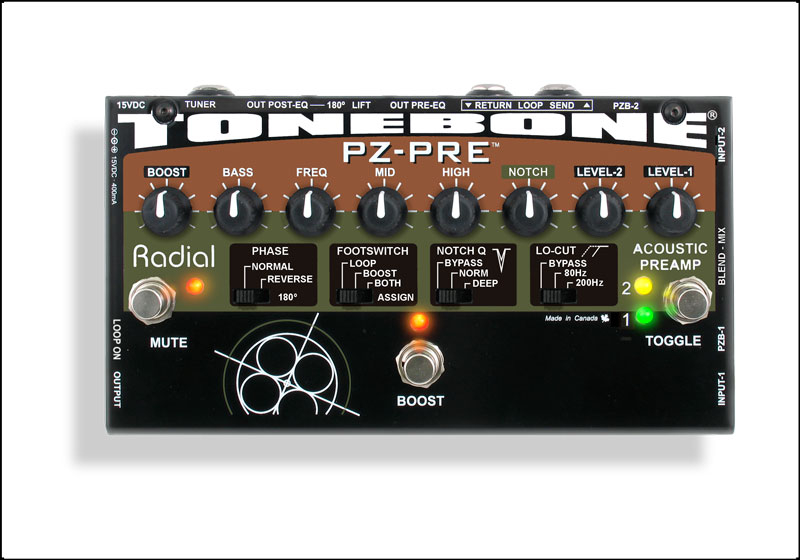

Radial Engineering PZ Pre 2-Channel Tonebone Acoustic Guitar Preamp

The Radial Tonebone PZ-Pre™ is the most powerful acoustic preamplifier ever to be put inside a pedal. And when they say acoustic, Radial doesn't just mean acoustic guitar - they mean ANY acoustic instrument including banjo, violin, cello, mandolin, contrabass, bouzouki or lute. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control.

The PZ-Pre is equipped with two inputs for quick instrument changes on stage. These can also be combined to blend two pickups together if you so desire. Features include a powerful yet warm sounding semi-parametric EQ to tailor your sound, feedback eliminating controls including a dual-Q notch filter to surgically remove feedback, a high-pass filter to cut low frequency resonance, and a phase reverse switch to eliminate hot spots on stage. It is also equipped with a host of outputs: a 1/4" hi-Z instrument out for an on-stage amp, a pre-EQ balanced XLR output for the PA system and a post EQ XLR out for stage wedges or in-ear monitors. A dedicated tuner out with mute switch lets you quietly tune on-stage. There's even a combination power booster - effects loop to add sizzle and dynamics to the performance and extra presence when soloing.

Features

• Two channels to switch between instruments
• Notch & resonance filters eliminate feedback
• Pre & Post Radial DI outputs for PA and monitors
• Power booster and mute for more control on stage

Specifications

• Audio Circuit Type: Proprietary active circuit
• # of Channels: Dual Input, Amp Out, Pre and Post EQ XLR Balanced Out
• Low cut roll-off:
  • Position 1: 75 Hz
  • Position 2: 220 Hz
• Notch Freq. range: 56 Hz to 330 Hz
• Notch Q:
  • Setting 1: -8 dB
  • Setting 2: -15 dB
• Power Boost: Unity Gain to +12 dB
• Effects send & receive: -10 dB
• Polarity: 180° switch (absolute phase reversal)
• Connections:
  • Input-1: 1/4" unbalanced
  • Input-2: 1/4" unbalanced
    • Standard Impedance: 6.8 kΩ
    • With PZB Switch: 10 MΩ
  • Insert (FX Loop) Send/Receive: 1/4" unbalanced
    • Send Impedance: 1 kΩ
    • Receive Impedance: 15 kΩ
  • Amp output: 1/4" unbalanced, Hi-Z, 1 kΩ
  • Tuner output: 1/4" unbalanced, Hi-Z, 6.8 kΩ
  • Pre-EQ output: XLR balanced mic level 600 Ω
  • Post-EQ output: XLR balanced mic level 600 Ω
• Footswitches:
  • Three: Mute, Boost, Toggle 1-2
  • Heavy-duty high-cycle switches
• LED indicators:
  • Large 3mm OD ultra-bright LED indicators for: mute, boost, Ch-1 & Ch-2 toggle status
• Construction: 14-gauge steel, baked enamel finish
• Dimensions (H x W x D): 2" x 8" x 4.5"
• Weight: 2.7 lbs (1.2 kg)
• Warranty: Radial 3-year limited warranty
• Power Supply: 15VDC 400mA, center pole positive
