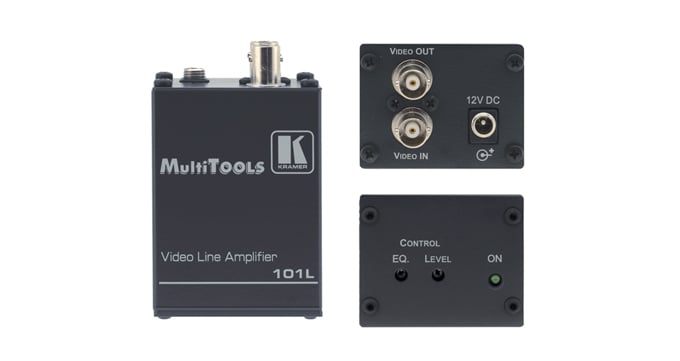

Kramer 101L
Composite Video Line Amplifier

OUR PART #:  101L

Kramer's 101L is a high-performance line amplifier for composite video signals.
Learn More
Our Price: $112.00
List Price: $140.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer 101L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer's 101L is a high-performance line amplifier for composite video signals.  It provides controls to improve video intensity and image sharpness (picture quality), compensating for signal loss inherent in long cable runs.

Kramer 101L Features & Specifications:

  • Bandwidth - 500MHz (-3dB)
  • Recessed Level (Gain) & EQ (Peaking) Controls
  • Ultra-compact - Part of the Kramer PicoTOOLSTM family of extremely compact, high quality and cost effective solutions.
  • Input: 1 composite video on a BNC connector, 1Vpp/75 Ohm
  • Output: 1 composite video on a BNC connector, 1Vpp/75 Ohm
  • Max Output Level: 2.5Vpp
  • Bandwidth: 500MHz.
  • Diff. Gain: 0.03%
  • Diff. Phase: 0.03 Deg.
  • Signal to Noise Ratio: 75dB
  • Controls: Level:-0.8dB to 6.5dB; equalization: 0dB to 8dB @ 5MHz
  • Coupling: DC
  • Power Source: 12V, 60mA (DC)
  • Dimensions: 2.09" W x 1.72" D x 2.85" H (5.32 x 4.36 x 7.25 cm)
  • Weight: Approximately 0.55 lb (0.15 kg)
  • Accessories: Power supply
