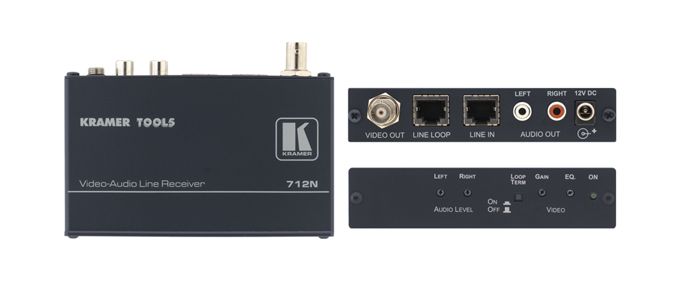

Kramer 712N
Transmitter/Receiver Need 711N

OUR PART #:  712N

The 711N and 712N are a twisted pair transmitter and receiver for composite video and unbalanced stereo audio signals.
Learn More
Our Price: $184.00
List Price: $230.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer 712N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 711N and 712N are a twisted pair transmitter and receiver for composite video and unbalanced stereo audio signals. The 711N transmitter converts composite video and stereo audio to a twisted pair signal and the 712N receiver converts the twisted pair signal back into composite video and stereo audio signals.

Kramer 712N Transmitter/Receiver Specifications:

  • Bandwidth - 85MHz (- 3dB).
  • Twisted Pair Input/Outputs - RJ-45 Connectors
  • Looping Input - 712N (RJ-45)
  • Selectable Input Signal Termination - 712N.
  • Level (Gain) and EQ (Peaking) Controls - 712N.
  • Power Connect™ System - Only one unit in a system, the transmitter or the receiver needs to be connected to a power source.
  • System Range - Up to 400 meters (1200’).
  • Cable - UTP (unshielded twisted pair) such as CAT5.
  • Compact Size - Part of the Kramer TOOLS™ family of compact, high quality and cost effective solutions.
  • Input: RJ-45 CAT-5 shielded connector (LINE IN)
  • Output: Composite video 1Vpp/75?, on a BNC connector; 1 stereo unbalanced audio 4dBm/50k?, on two RCA connectors
  • Video Max. Signal Level: 2.8Vpp
  • Audio Max. Signal Level: 7.6Vpp
  • Video Bandwidth (-3dB): 85MHz
  • Audio Bandwidth (-3dB): >100kHz
  • Diff. Gain: 0.04%
  • Diff. Phase: 0.25­°
  • K-FACTOR: 0.1%
  • Video S/N Ratio: 75dB
  • Audio S/N Ratio: 77dB
  • Audio Crosstalk (all hostile): -53dB @ 5MHz, video into audio
  • Controls:
    • Level: -1.3dB to +6.3dB; EQ @ 30MHz: 0dB to +3.7dB
  • Video Coupling: DC
  • Audio Coupling: DC for both line input and output
  • Audio THD + NOISE: 0.026%, 1kHz
  • Audio 2nd Harmonic: 0.001% @ 1kHz
  • Power Source: 12 VDC 45mA, when 711N is fed by an independent 12V supply
  • Dimensions (WxDxH): 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08")
  • Weight: 0.3 kg. (0.67 lbs.) approx. (each)
  • Accessories: Power supply, mounting bracket (each)
  • Options: RK-T1, RK-T3, 19 inch rack adapters
