QSC AD-S282H
8" AcousticDesign 2-Way High Output Surface Mount Speaker in Black

OUR PART #:  AD-S282H-BLACK

The QSC AcousticDesign AD-S282H is a full range, surface mount loudspeaker with a sleek...
Learn More
Our Price: $830.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

QSC AD-S282H
Qty:
In Stock

Similar Products

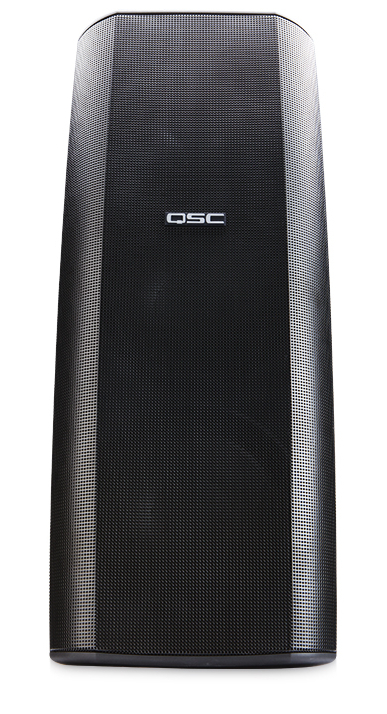

The QSC AcousticDesign AD-S282H is a full range, surface mount loudspeaker with a sleek, contemporary styling that fits perfectly into multiple surroundings and applications including hotels, restaurants, convention facilities, and multimedia environments. The speaker incorporates the Advanced Directivity™ rotatable waveguide.

The AD-S282H is a 2-way system housed in a ported enclosure made from injection molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.

QSC AcousticDesign AD-S282H Features:

  • Contemporary Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications
  • Dual 8", 2-Way System - in a lightweight, multipurpose enclosure featuring a powder coated aluminum grill
  • Versatile Mounting Options- The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provision for optional Omni-mount™ bracket is builtin
  • Advanced Directivity™ Rotatable Waveguide - (90° x60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation
  • Low Impedance and Transformer Versions -Standard 8ohm system is selectable for passive or active operation while the AD-S282HT transformer version provides taps for both 70V and 100V distributed system use

QSC AcousticDesign AD-S282 Specifications:

  • Configuration: Compact two way, ported enclosure
  • Low Frequency Transducer: Dual 8" high-power, treated paper cone, 2" voice coil, neodymium magnet
  • High Frequency Transducer: 1" high-output compression driver
  • Frequency Response (±3 dB): 80 Hz - 27.7 kHz
  • Useable Frequency Range (-10 dB): 60 Hz- 29.5 kHz
  • Maximum Output (continuous): 119 dB SPL
  • Maximum Output (peak): 125 dB SPL
  • Nominal Impedance: 8 ohms (5.25 ohms minimum, 17.6kHz, 64.22 ohms maximum, 2.56 kHz)
  • Power Rating: 450 W (IEC, 8 hours)
  • Recommended Max Amp Power: 900 W RMS
  • Sensitivity: 93 dB, 1 m, free field
  • Nominal Coverage: 90° H x 60° V (-6 dB) (rotatable to 60° H x 90° V)
  • Bass Loading: Ported, tuned to 60 Hz
  • Transformer Type: Custom low-distortion laminated core, wide bandwidth design
  • Taps: 70V 200, 100, 50, 25 W; 100V 200,100, 50 W
  • Bypass: 8 ohm bypass on AD-S282HT
  • Material: Injection molded, weather-resistant, high-impact polystyrene
  • Finish: Black (paintable)
  • Weather Resistance: Yes
  • Grill: Heavy-duty powder-coated aluminum
  • Connectors: Barrier Strip, (switchable: passive/active on AD-S282H)
  • Mounting Hardware: Yoke Mount (included)
  • Weight: 27.7 lbs net, 35.6 lbs shipping
